VIDIR
Preço sem IVA
Imprimir
INFO
Grupo de produtos
Construção - Outros
Marca / modelo
VIDIR
Ano de fabrico
2021
Condição
Usado
Localização da máquina
Langley, British Columbia
País
Canadá
Mascus ID
0784B60E
PREÇO
Escolher moeda
DETALHES
N°. de ref. de armazém
131984
Outras informaçőes

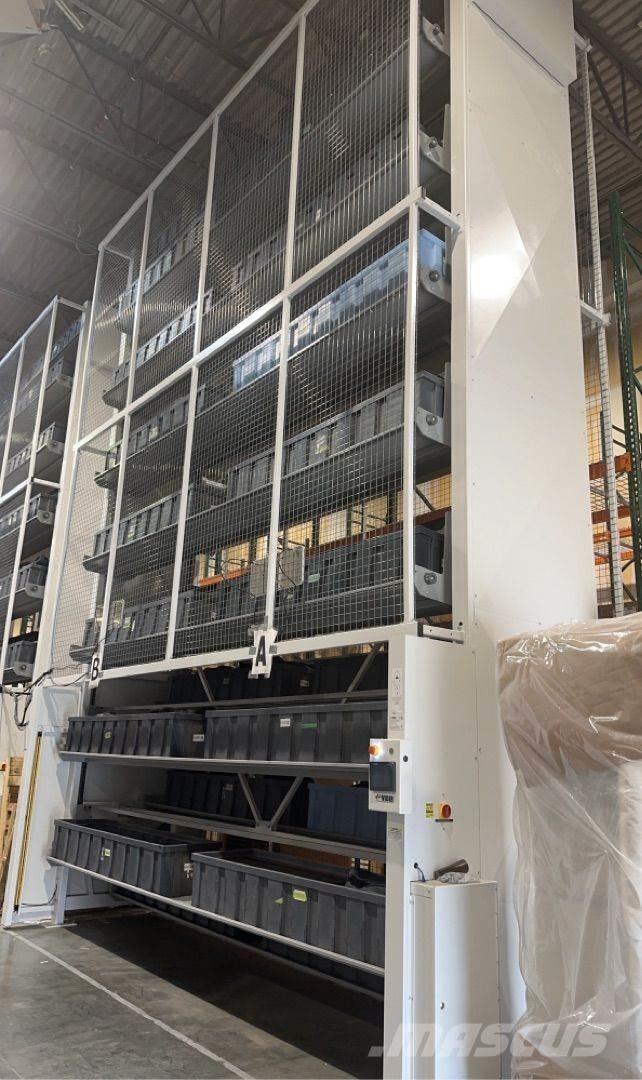

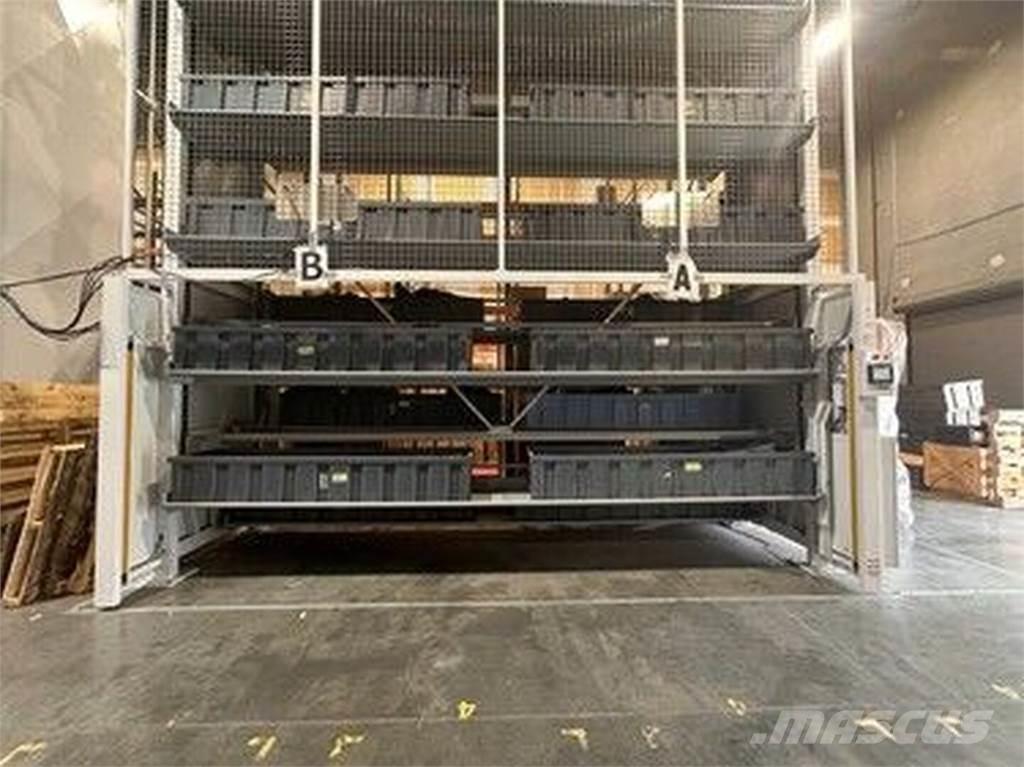

Shelving Carousel - Automated Warehouse Vertical Storage Solution
Title: Shelving Carousel - Automated Warehouse Vertical Storage Solution
SKU: 131984
Year: 2021
Condition: Used
30' Shelving Carousel:
- Height: 346.25"
- Width: 210"
- Depth: 87.125"
- Shelf Carriers: 18
- Shelf Carrier Dimensions: 194" L x 21.5" D x 15" H
- Overall Weight Capacity: 13,000 lbs
- Maximum Weight per Carrier: 500 lbs
- [PDF drawings](... Shelving Carousel:
- Height: 256.125"
- Width: 204"
- Depth: 94.5"
- Shelf Carriers: 8
- Shelf Carrier Dimensions: 186" L x 32" D x 29" H
- Overall Weight Capacity: 13,000 lbs
- Maximum Weight per Carrier: 1000 lbs
- [PDF drawings](... Shelving Carousel:
- Height: 308.325"
- Width: 210"
- Depth: 87.125"
- Shelf Carriers: 16
- Shelf Carrier Dimensions: 194" L x 21.5" D x 15" H
- Overall Weight Capacity: 13,000 lbs
- Maximum Weight per Carrier: 500 lbs
- [PDF drawings](... Carrier Tilt: 10%
Additional Carousel Options: Carrier Stabilizer
Top Limiter Bar: Top Limiter Bar moved to the back of the carrier
Drive System: (2) 2 HP Leeson Motors
Carousel Electrical: 208V 3 Phase 15 Amp
Drive Configuration: Variable Speed (VFD)
Carousel Controls: ASRS 8.0 Auto-Retrieval
Ethernet Port Externally: accessible ethernet port for carousel networking
Control Features: Automatic Re-zero included
Control Options: Mushroom E-Stop | Main Power Disconnect
Control Location: Front Right Hand Tower
Max. Retrieval Speed: 21' per minute
Carousel Guarding: Uprights | 2" Wire Mesh Front/Back
Foot Plate Dimensions: 9-1/2" x 6" x 3/8"
Concrete Anchors: 5/8" HILTI KB-TZ wedge anchor
Primary Carousel Color: VM Textured White
Carrier Color: VM Textured Grey
Technical Documentation Language: English
Lenmark Industries Ltd
27576 51a Ave V4W 4A9 Langley British Columbia Canadá
