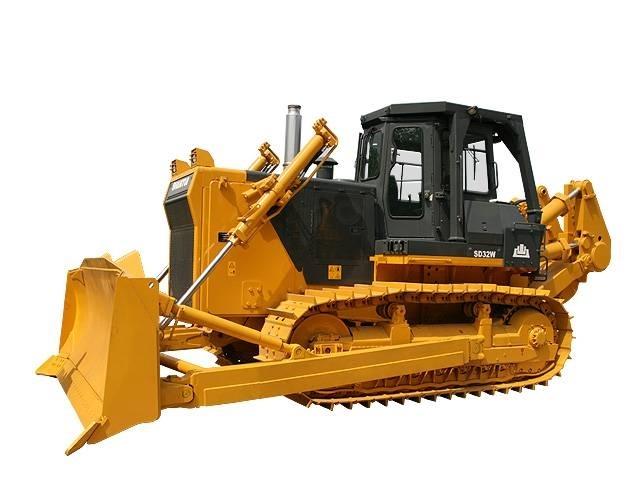

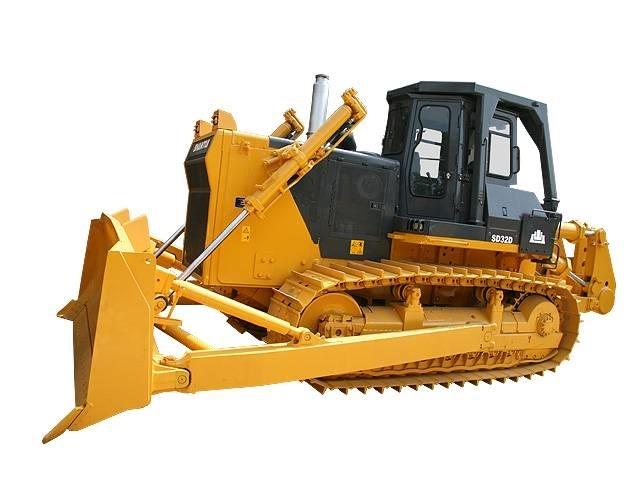

Shantui SD32

Ripper

ITEM 　UNIT SD32 L×W×H (Ripper not included) mm 6880×4130×3725 Operating weight (Ripper not included) t 37.2 Engine - CumminsNTA855-C360S10 Rated power kW/rpm 235/2000 Gradeability ° 30 Blade type - Straight tilt bladeSemi-U bladeAngle blade Blade width mm Straight tilt blade 4130×1590Semi-U blade 4030×1720Angle blade 5000×1140 Dozing capacity m3 Straight tilt blade 10Semi-U blade 11.9Angle blade 6 Ma× drop below ground of blade mm 560 Lift height of blade mm 1560 Ripper type - Single ripperThree-shank ripper Ripping depth of ripper mm Single ripper 1250Three-shank ripper 842 Lifting height of ripper mm Single ripper 955Three-shank ripper 883 Number of carriers (each side) - 2 Number of track rollers (each side) - 7 Number of track shoes (each side) - 41 Width of track shoe mm 560 Track gauge mm 2140 Ground length and ground pressure mm/MPa 3150-0.105 Pitch mm 228.6 Forward speed km/h 0–3.6 0–6.6 0–11.5 Reverse speed km/h 0–4.4 0–7.8 0–13.5
