N°. de ref. de armazém

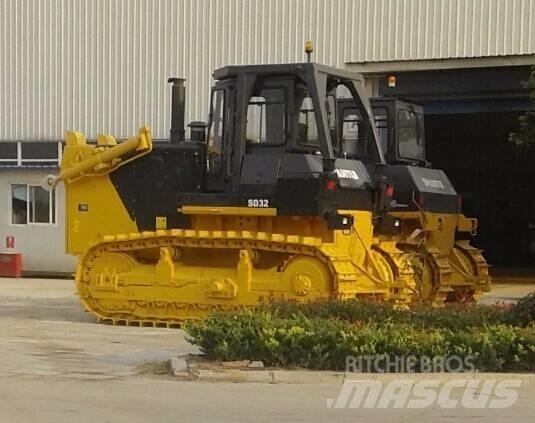

SD32
Histórico de serviço completo
Sim
Largura operacional
413 cm
Classe de emissão
Stage II
Tipo de cabine
Cabina fechada
Motor
Cummins NTA855-C360S10
Potência do motor
232 kW (315 cv)
Fabricante do Motor
Cummins
Dimensőes em transporte (CxLxA)
6880 x 4130 x 3730 mm
Informações sobre a condição/garantia
ISO9001
Estado dos pneus dianteiros
100
Equipado para
propertynames.pp_equippedfor_2100012
Condições de entrega
FOB, CFR, CIF, EXW
Certificados
EPA, CE, ANSI
Outras informaçőes
Technical Features
●Chongfa NTAA855-C360S10 engine is equipped with exhaust gas turbocharger, featuring strong power and high efficiency and energy-saving, and can work normally even in the highlands as high as 3,600m. Depending on the customers’ demands, the option Cummins and Weichai engines are available.
●The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission capacity and efficiency and high productivity.
●The independent engine water tank, the chassis oil cooler, and the water-air intercooler integrated in the Chongfa engine provide prominent cooling performance and simple maintenance operations to guarantee the continuous working of the machine.
●The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame.
●The low-drive final drive can provide powerful drive force and efficient gradeability. Shantui's crawler chassis has reached the international advanced level in process level and can adapt to various complicated working conditions, featuring high reliability and carrying capacity.
●The standard straight tilting blade features powerful cutting force and the single-shank and three-shank rippers of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine.
Performance Parameters
Length × width × height (mm) (excluding ripper) 8560×4130×3640(including ripper) Operating weight (t)(excluding ripper) 37.2
Engine model NTA855-C360S10 Net power/rated speed (kW/rpm) 235/2000
Ground pressure(Mpa) 0.105 Blade type Straight tilting blade Angle blade Semi-U blade
Blade capacity(m3) 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade
Applicable Working Conditions
Bulldozing, digging, landfill, and other bulk operations.Mostrar mais
