N°. de ref. de armazém
SD42-3
Histórico de serviço completo
Sim
Largura operacional
432 cm
Classe de emissão
Stage II
Tipo de cabine
Cabina fechada
Potência do motor
386 kW (525 cv)
Dimensőes em transporte (CxLxA)
9630 x 4320 x 3960 mm
Informações sobre a condição/garantia
ISO9001
Estado dos pneus dianteiros
100
Equipado para
propertynames.pp_equippedfor_2100012
Condições de entrega
FOB, CFR, CIF, EXW
Certificados
EPA, CE, ANSI
Outras informaçőes

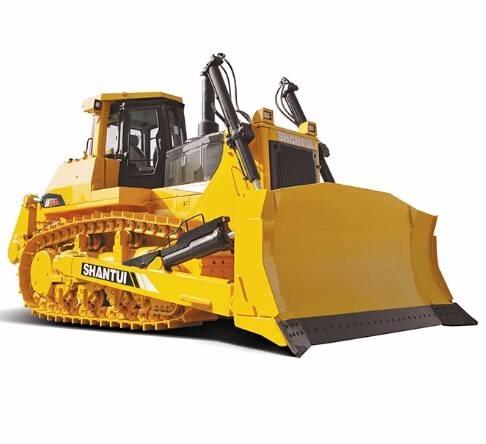

Technical Features
●Cummins KTA19-C525 turbocharged diesel engine reduces the quantity of parts by >25% and saves the maintenance time by >50% than like products, featuring strong power and high efficiency and energy-saving.
●The high reliability power shift transmission and the planetary gear final drive feature high power transmission efficiency and high durability and productivity.
●The new structure cylinder and the originally imported seals and hydraulic hoses for critical portions are adopted to greatly promote the service life and reliability. The external working valves make the maintenances easier.
●The imported instruments feature higher reliability and more accurate and distinct indications and realize electronic monitoring and out-of-limit alarm for the operation conditions of major components and for the parameters such as oil temperature, oil level, and water temperature.
●The K-type air suspension traveling system and hinged chassis structure can effectively guard the drive system against the influence of impact load and improve the traction performance and life of the machine.
●The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame.
●The ergonomic driver seat and armrests can be adjusted easily in vertical and longitudinal directions. The gearshift, steering, and accelerator controls are arranged on the left side and the working device controls are arranged on the right side. The PPC pilot control system is adopted to achieve lighter and more flexible operations and relieve the operating fatigue.
●The front working device is one standard semi-U blade in super-high capacity of 16m3, which is an ideal high-efficiency working device for earthwork constructions and bulk material handling. The rear working device is one single-shank ripper of adjustable angle, featuring super-strong penetrating force.
Performance Parameters
Length × width × height (mm) (excluding ripper) 9630×4314×3955 Operating weight (t) (excluding ripper) 54 (including ripper)
Engine model KTA19-C525 Net power/rated speed (kW/rpm) 310/2000
Ground pressure(Mpa) 0.123 Blade type Semi-U blade
Blade capacity(m3) 16
Applicable Working Conditions
The earthwork mining and rock stripping conditions for mining and construction projects.Mostrar mais
