Shantui STR20-5

Preço sem IVA

Preço s/ consulta

Compnay LOGO
Images1

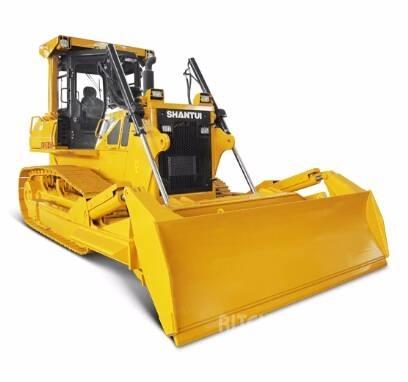

Shantui STR20-5 Dozers - Tratores rastos
FavoriteFavorito
sharePartilhar
Save searchGuardar pesquisa
Imprimir

INFO

Grupo de produtos
Dozers - Tratores rastos
Marca / modelo
Shantui STR20-5
Ano de fabrico
2018
Condição
Novo/Nunca usado
Localização da máquina
Jining, Shandong, China
País
China
Grau geral
1
2
3
4
5
Mascus ID
B6E0DAFF

DETALHES

N°. de ref. de armazém
STR20-5
Última inspecção
yes
Histórico de serviço completo
Sim
Largura operacional
340 cm
Número de série
STR20-5
Peso bruto
21 000 kg
Subestrutura
De lagartas
Tipo de cabine
Cabina fechada
Classe de emissão
Stage II
Motor
Weichai WD12
Potência do motor
149 kW (203 cv)
Largura Rastro
560 mm
Transmissão
Shantui
Dimensőes em transporte (CxLxA)
6500 x 3400 x 3070 mm
Cor Original
yellow
Marca do pneu
Shantui
Informações sobre a condição/garantia
ISO9001
Estado dos pneus dianteiros
100
País de fabrico
China
Equipado para
propertynames.pp_equippedfor_2100011
Condições de entrega
FOB, CFR, CIF, EXW
Certificados
EPA, CE, ANSI
Acessórios
Guincho
Ar condicionado
Hidráulica adicional
Ripper multi-haste
Mostrar mais
Outras informaçőes
Technical Features ● It’s equipped with Weichai WD12 engine and three-stage air filter and is additional fitted with anti-scalding device, featuring higher efficiency and better energy-saving. ● The imported bearings for the transmission and main drive and the friction plates of higher skid and wear resistance and better anti-pollution capacity are adopted to achieve more excellent operating performances of the trimming bulldozer. ● The cooling system adopts enlarged water tank and straight-through type core. The three-point (up and down) shock-absorbing installation for the radiator features higher stability. ● The lifting cylinder of the hydraulic system adopts the bushing cap structure, featuring convenient maintenances. ● The electric circuit design of the whole machine adopts the water-proof circuits and water-proof fuse case. It’s additionally fitted with oil temperature, oil pressure, and water temperature alarms and reversing alarm. ● The floating oil seals within the guide wheel, carrier roller, and track roller can prevent the ingress of dusts and the leakage of lubricating oil to guarantee the high durability. ● The working device is controlled directly by the valve stems, featuring high reliability, lightness, and rapidness, and the locking mechanism features easy and reliable operations. ● The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame. ● New cab features good sealing performance and low noise and the instruments are reasonably arranged to realize convenient and rapid operations. Performance Parameters Overall dimensions(mm) 6468×3352×3063 Operating weight (kg) 21000 Engine model WD12 Net power/rated speed (kW/rpm) 149/1950 Track plate width (mm) 510 Ground pressure(Mpa) 0.063 Blade width/height (mm) 3175/950Mostrar mais

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 China
