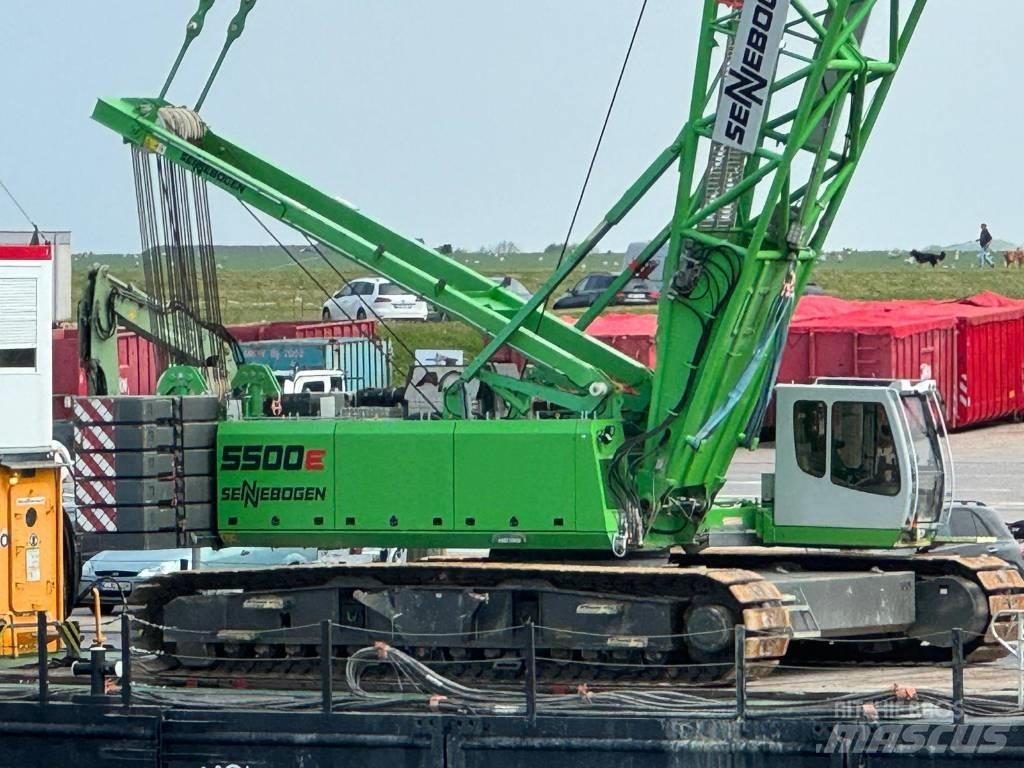

Sennebogen 5500 R

Complete Equipment Specification – SENNEBOGEN 5500 G Series Crawler Crane Base Machine • SENNEBOGEN 5500 - 200 R – Hydraulic Crawler Crane Star Lifter / Series G • Star Lifter wide-gauge undercarriage • CUMMINS engine L9, 272 kW / 2100 rpm o Operating point: 283 kW / 1800 rpm o EU Stage V / US EPA Tier 4 Final compliant o Water-cooled o Includes: electrically heated water separator with fuel pre-filter 24V • Air filter pre-separator • Diesel particulate filter (DPF) • Automatic idle stop for diesel engine • ECO-mode for diesel engine • SENNEBOGEN control & diagnostic system SENCON • Lighting package: o 2 headlights integrated in the cabin roof (front) o 1 LED working light (24V/50W) on upper carriage front-right Camera System • Basic camera system with 3 cameras and 7” color monitor o Quad split-screen o Expandable up to 4 cameras o 3x color cameras with 115° field of view for:  Rear view  Right-hand side  Winch monitoring Hydraulics & Undercarriage • Modern, high-performance 4-circuit hydraulic system • Powerful slewing drive with 2 gearboxes and slewing freewheel • Counterweight • Tool kit included • Wide-gauge undercarriage, track width 5800 mm o Heavy-duty drive system type B9HDS, track length 8500 mm • Maintenance-free B9HDS crawler chains (67 links) with 1000 mm flat shoes, cast design • 1-stage travel motor for B9HDS undercarriage • Hydraulic undercarriage lifting device with 4 hydraulic cylinders, individually controlled • Hydraulic system for crawler installation/removal, integrated in boom foot Operator's Cab (MAXCAB) • Spacious comfort cab with sliding door o Can be hydraulically extended outward by 0.8 m and tilted back by approx. 20° o Tinted safety glass, tiltable front window, roof window o Windshield wiper and washer for front and roof windows o Radio prep with antenna and speaker o 2 roof-mounted headlights o Automatic heating/air conditioning with fresh and recirculated air filter • Comfort seat: air-suspended, with climate control, lumbar support, seat heating, headrest • 2” seatbelt • Sunblind for roof window (interior) • Roof window made of armored glass (fixed) • Radio with USB, MP3, Bluetooth Ballast & Handling • Counterweight: o 75 t rear ballast o 26 t central ballast integrated into the undercarriage • Hydraulic ballast handling system (max. 75 t upper carriage ballast) • Railings on upper carriage • Step grating next to cabin (removable) • Standard operating fluids (oils and greases) for -20°C to +40°C • Hydraulic oil: Shell Tellus S2 VA 46 Important Note on Hydraulic/Bio Oils • Only SENNEBOGEN-tested and approved standard oils are covered by warranty • Use of other oils at customer request excludes warranty for damages Additional Equipment • SENNEBOGEN Hydro-Clean: hydraulic fine filtration with water absorption and contamination indicator • 2x hand-held fire extinguishers (Type PD6) • Slewing ring pinion lubrication, manually operated from the cab • Automatic central lubrication for: o Internal slewing ring raceway o A-frame articulation o Boom foot pin • Electric refueling pump (50 l/min) with fill level cut-off o Not suitable for machines with pylon • 3-stage slew speed control Winches • 2x crane winches (rear and front): o 120 kN line pull (max. 160 kN in first layer) o Special groove (Lebus system), 26 mm rope diameter, low maintenance • Motion indicators for both winches and boom luffing winch • 1 wedge socket incl. wedge for 26 mm hoist rope Boom System • Main boom SH with luffing fly jib WS o Minimum length for each: 24.3 m o SH boom (18.7 m):  7.0 m base section,  5.6 m intermediate section,  5.6 m conical intermediate section,  0.5 m tip section with synthetic rope sheaves o Boom luffing via A-frame and adjustment winch o Boom guying for SHWS and SHLH systems • Fly jib WS (18.7 m): o 7.0 m base section o 5.6 m intermediate section o 5.6 m conical intermediate section o 0.5 m tip section with synthetic rope sheaves o Boom guying for SHWS system o Adjustment system incl. winch o Wind
