INFO

Grupo de produtos
Mini Escavadoras <7t
Marca / modelo
CAT 303 CR
Ano de fabrico
2023
Horas de utilização
400 h
Condição
Remanufactured
País
China
Grau geral
1
2
3
4
5
Mascus ID
A2D0DB59

PREÇO

Escolher moeda

DETALHES

Tipo de accionamento
Diesel
Número de proprietários anteriores
1
Condição do chassi
good
Peso bruto
3 548 kg
Débito do equipamento hidráulico adicional
66 l/min
Classe de emissão
Stage V / Tier IV Final
Largura Rastro
300 mm
Capacidade do balde
0,12 m3
Dimensőes em transporte (CxLxA)
473017802.5 m
Cor Original
YELLOW

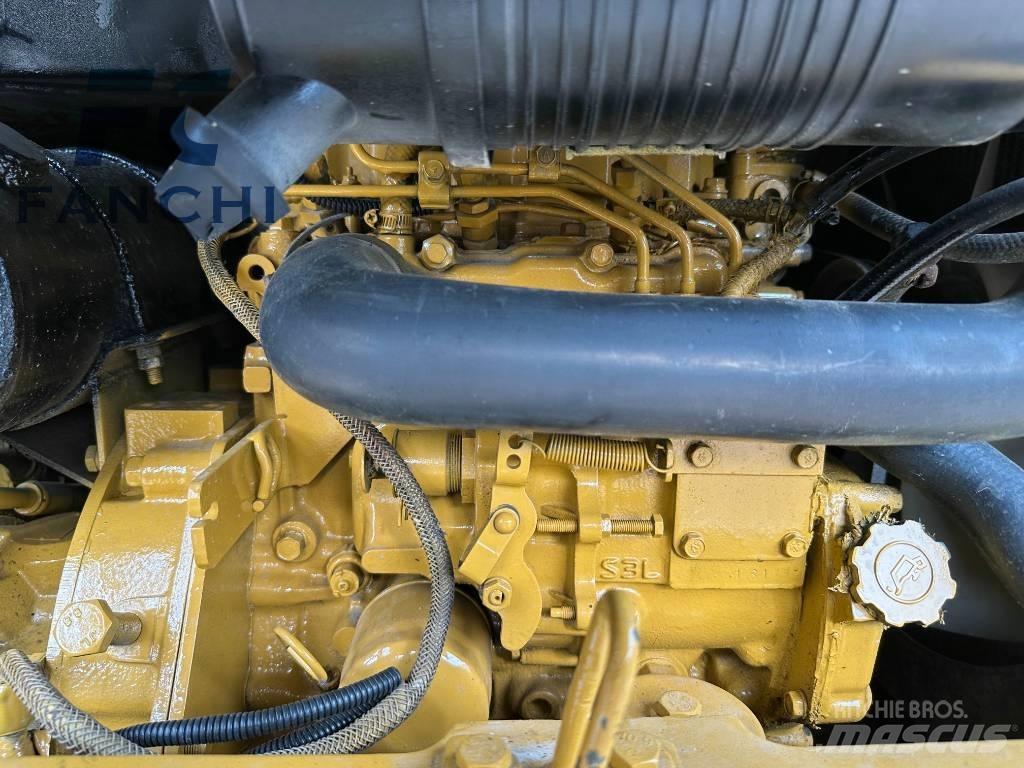

Motor
Cat C1.8
Potência do motor
23,6 kW (32,1 cv)
Fabricante do Motor
japan
Marca do pneu
original
Informações sobre a condição/garantia
good
País de fabrico
Japão
Condições de entrega
FOB, CIF, EXW
Certificados
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Acessórios
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Acessórios
Manual / mechanic quick coupler
circuito hidráulico de martelo
Ar condicionado
Aquecedor Gasóleo
Mostrar mais
Outras informaçőes
The following are some parameters of the Caterpillar CAT303.5CR excavator: - **Overall Dimensions of the Machine** - Total transportation length: 4730mm, total transportation width: 1780mm, total transportation height: 2500mm. - Track shoe width: 300mm, track ground contact length: 2220mm. - Rear swing radius: 890mm. - **Operating Weight and Capacity** - The operating weight of the whole machine is approximately 3548 - 3770kg. - Bucket capacity: 0.12m³. - Fuel tank capacity: 46L, hydraulic oil tank capacity: 42.3L, engine oil change volume: 7L, coolant volume: 5.5L. - **Performance Parameters** - Engine model: Cat C1.8, rated power: 23.6kW. - Travel speed (high/low): 4.6/2.6 km/h, swing speed: 9rpm. - Bucket digging force: 33kN, stick digging force: 18.9kN. - Maximum drawbar pull: 31kN. - **Working Range** - Maximum digging radius: 5200mm, maximum digging radius at the ground level: 5060mm. - Maximum digging depth: 2880mm, maximum vertical digging depth: 2320mm. - Maximum digging height: 5030mm, maximum unloading height: 3640mm.Mostrar mais

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 China
