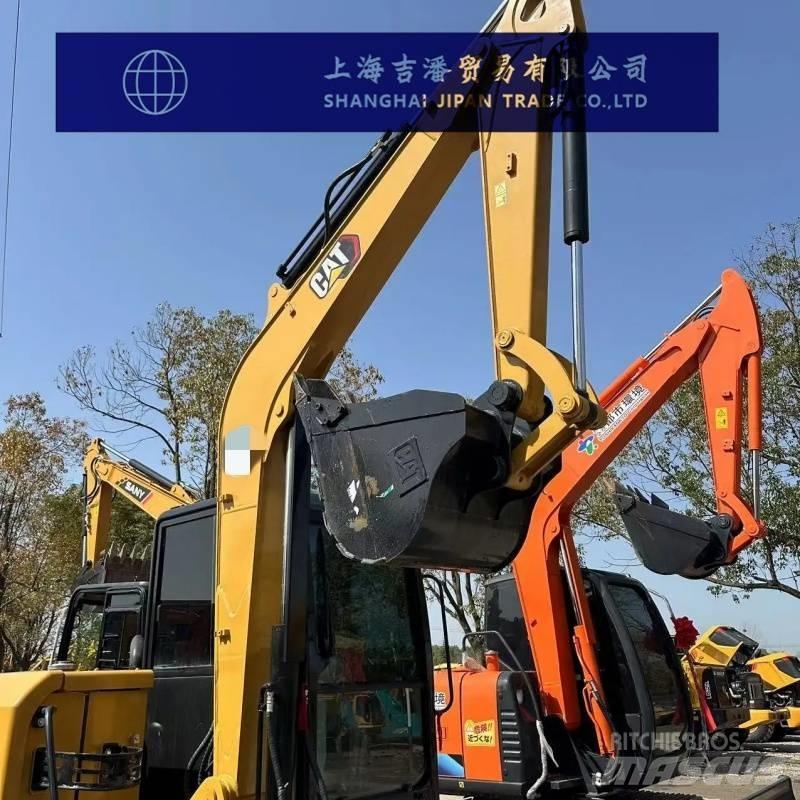

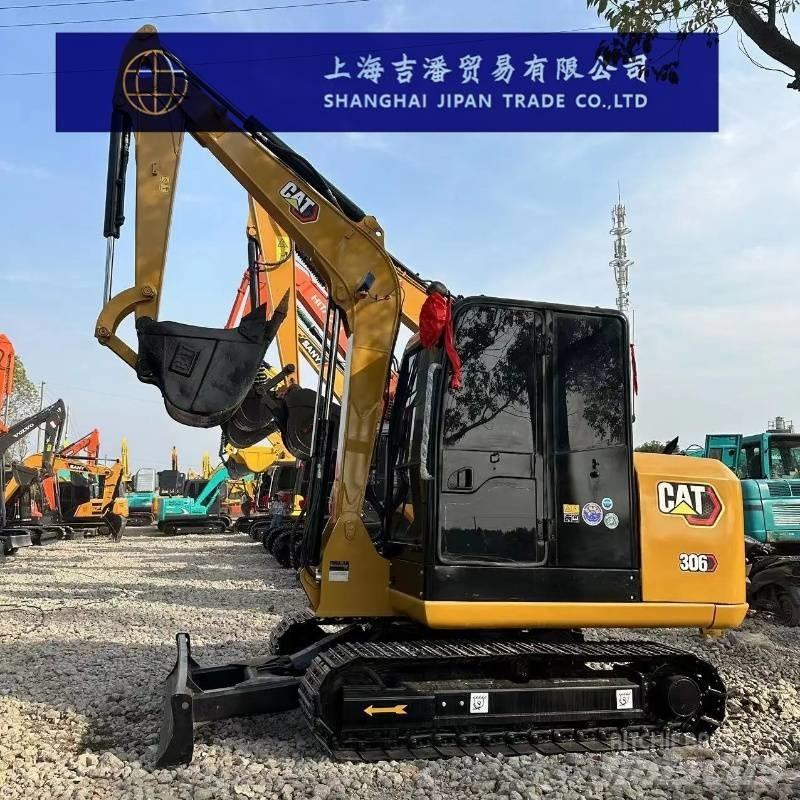

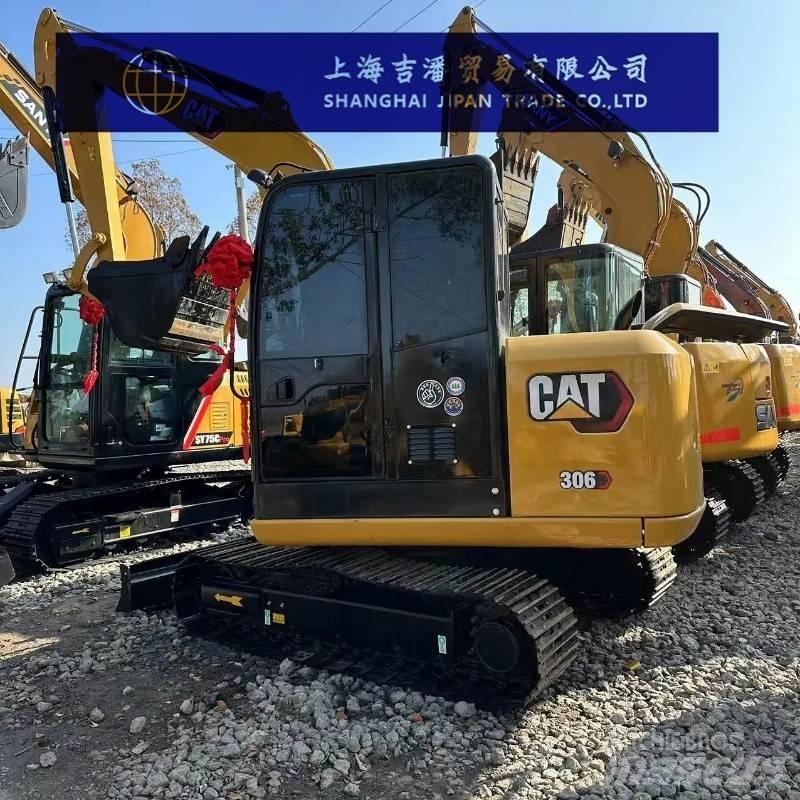

CAT 306

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

规格 整机工作重量(kg)5795 铲斗容量(m³)0.22 斗杆长度(mm)1580 原产地江苏吴江 吨位(吨)6 动力传统动力 铲斗反铲 厂商合资/进口 动力传统动力 性能 回转速度(rpm)10.3 回转扭矩(Nm)14.2 行走速度(km/h)2.8/4.8 铲斗挖掘力(kN)40 斗杆挖掘力(kN)26 最大牵引力(kN)48.2 动力系统 发动机型号Cat C2.6 DLturbo 额定功率(kw/rpm)41.5 排量(L)2.615 缸径×行程(mm)87×110 冷却方式水冷 工作形式直喷；涡轮增压 油类容量 燃油箱(L)135 液压油箱(L)58 液压系统(L)85 发动机油更换量(L)11.2 冷却液(L )15.5 主体尺寸 运输总长度(mm)5990 运输总宽度(mm)1950 运输总高度(mm)2540 履带接地长度(mm)1900 履带总长度(mm)2500 履带板宽度(mm)400 前段工作装置最小回转半径(mm)2470 后端回转半径(mm )1700 作业范围 最大挖掘半径(mm)6140 停机面最大挖掘半径(mm)6010 最大挖掘深度(mm)3800 最大挖掘高度(mm)5530 最大卸载高度(mm)3960
