Horyong BMK-403 ECO

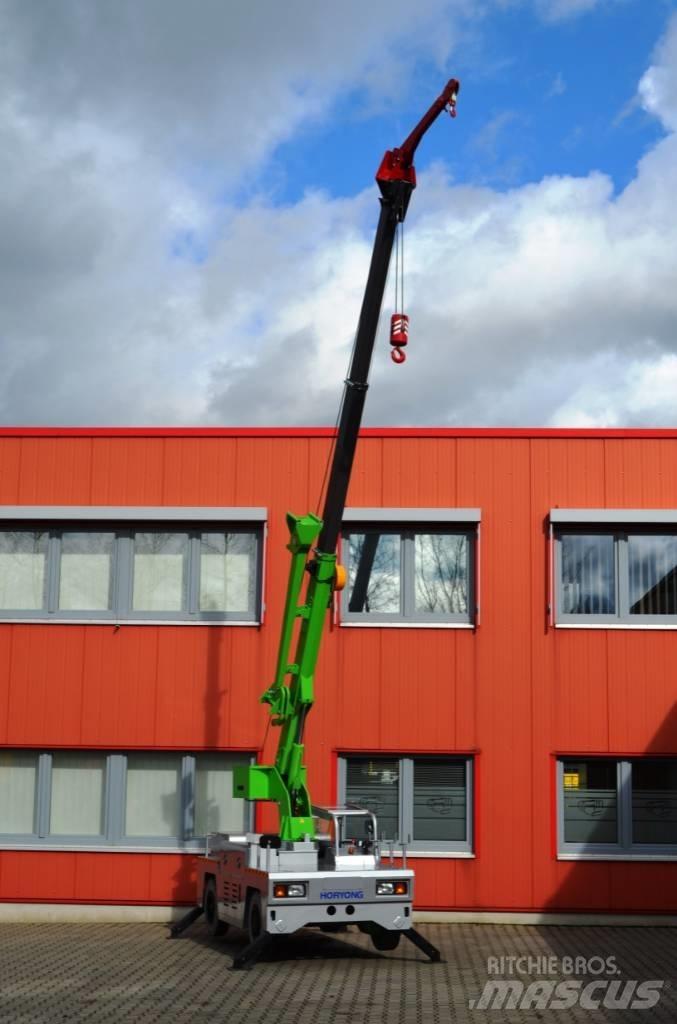

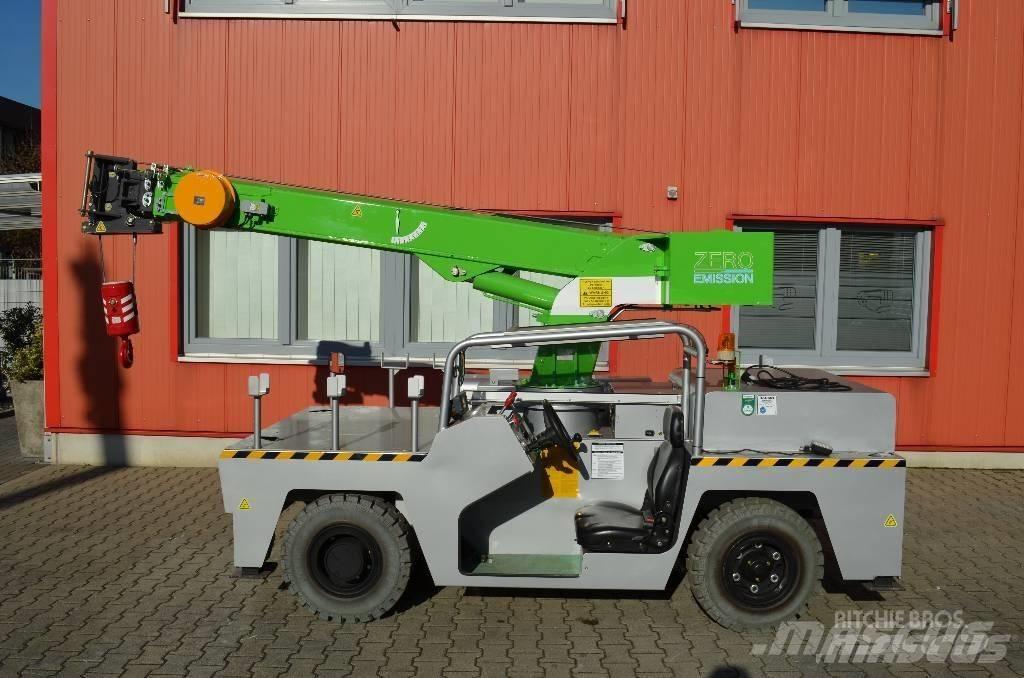

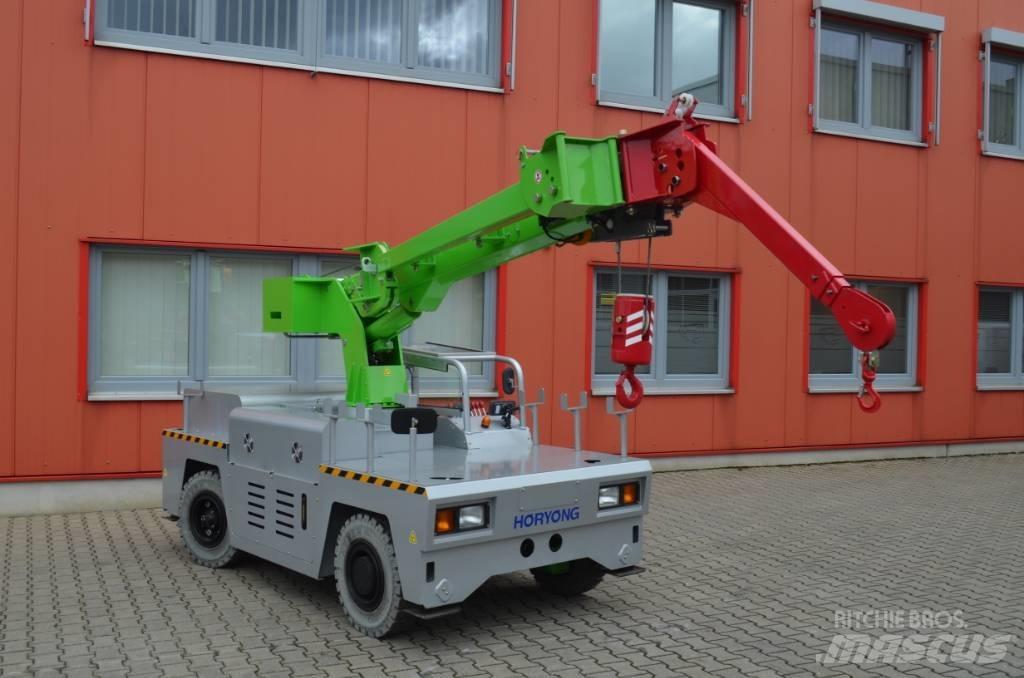

Battery industrial yard crane HORYONG BMK-403 ECO, used unit battery drive, CE 2018, approx. 287 working hours Pick+carry and Carry deck TECHNICAL DETAILS: max. lifting capacity 4,2 t x 0,9 m max. load pick + carry 2,9 t max. load on carry deck 2,5 t max. working range 6,7 m (8,2 m with fly jib) max. hook height: 8,41 m (10,2 m with fly jib) DIMENSIONS & WEIGHT length 4.350 mm width 1.570 mm, height 2.050 mm total weight of crane: 4.019 kg outrigger base: 2.330 mm x 3.330 mm CRANE EQUIPMENT: telescopic main boom 3,07 bis 6,8 m, fully hydraulic, 3 sections fly jib with sheave head 2,2 m, max. lifting capacity 1,2 t, angel 0°, 25°, 50° one winch 360° slewing range unlimited Electronical Safe Load Indicator System Rayco Wylie i4500 working range limiter optical and voice warning system working light, emergency stop, round-about light hook block 1-sheave, max. 4,0 t lifting capacity drive 4 x 2 x 2 Carry-Deck for goods, size 1,55 m², max. load 2,9 t 3 pieces pipe holders / transport holders 4-point hydraulic outriggers, front and rear electric engine with batteries, 2x 10 kW, 72V / 300 Ah, rechargable batteries, integrated battery charger max. speed of crane is 6 km/h 4x non marking tires open crane driver cabin with lattice protection roof, operation panel The electric yard crane crane is in good working condition and can be ideally used inside hall areas where exhausts are vorbidden, The unit is immediately available ex our yard and can also be rented for jobsites in Germany.
