Unic B-506-5.2

Preço sem IVA

Preço s/ consulta

Compnay LOGO
Images2

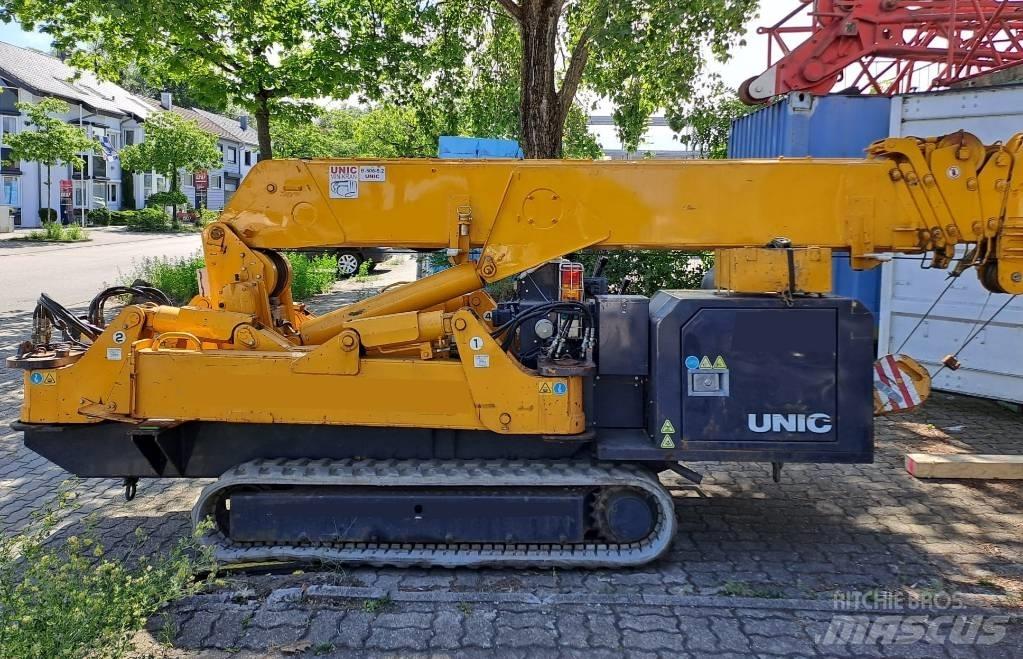

Unic B-506-5.2 Mini gruas
Unic B-506-5.2 Mini gruas
FavoriteFavorito
sharePartilhar
Save searchGuardar pesquisa
Imprimir

INFO

Grupo de produtos
Mini gruas
Marca / modelo
Unic B-506-5.2
Ano de fabrico
2016
Horas de utilização
767 h
Localização da máquina
Duisburg, Nordrhein-Westfalen
País
Alemanha
Grau geral
1
2
3
4
5
Mascus ID
470353FC

DETALHES

Número de proprietários anteriores
1
Peso bruto
5 150 kg
Capacidade de elevação
5 000 kg
Boom length
1 570 cm
Max lifting capacity at end of jib
900 kg
Jib length of crane
1 570 cm
Altura de elevação
1 900 cm
Hook height of crane - horizontal jib
1 600 cm
Hook height of crane - luffed jib
300 cm
Dimensőes em transporte (CxLxA)
4870 x 1400 x 2035 mm
Marca do pneu
NM-Antriebsketten
País de fabrico
Japão
Condições de entrega
FCA, CFR, EXW
Certificados
CE, TÜV
Acessórios
Blocos de gancho
3-rollig, max. 5,0 t 1-rollig, max. 1,7 t Einseilhaken, max 0,9 t
Outras informaçőes
UNIC mini crawler crane, model B-506-5.2, year 2016, (used) only 767 h working hours incl. German DEKRA approval max. loading capacity 5,0 t TECHNICAL DETAILS: Max. Loading 5.0 t x 2.0 m Max. Hook height 19.0 m Max. Working area 16.5 m Dimensions: length 4870 mm (L) x 1400 mm (W) x 2035 mm (H) Weight approx. 5.150 kg STANDARD EQUIPMENT: 3.93 – 15.71 m telescopic main boom fully hydraulic Boom head with 3-sheaves 3,0 m folding jib with sheave head and searcher hook, max. 850 kg, hydr. adjustable 0-20° 1,0 m jib, max. 1,7 t, hydr. adjustable 0-20° 1x hoist winch German rope, low-spin, fine braided 360 ° rotation range (continuous), Diesel engine 18 kW (24,5 HP) Electric drive 380 V (AC 50/60 Hz, power 7,5 kW) with cable 50,0 m Radio remote control Safe load indicator Rayco Wylie Systems i4500 Variable footprint, computer controlled, variable positioning of each outrigger length (mininum, half, maximum), automatic detection of the outrigger position and calculation of the max. load of each outrigger Overwinding alarm, computer controlled intelligent voice warning system working lights, driver´s seat, Hydrostatic drive, step-less forward and reverse Speed 0 – 3,0 km/h, Track ground length 1.800 mm, Track ground width 300 mm Track ground pressure 0,46 kg/cm2 Hook block 3-sheaves, max. loading capacity 5,0 t Hook block 1-sheave, max. loading capacity 1,7 t Ball, max. loading capacity 900 kg Superstructure yellow, Chassis Black-grey Ideal for limited work areas or confined access to the work area and an intelligent solution and alternative to the conventional mobile crane (large crane) Various mini crane models with lifting capacities of 0.99 - 10.0 t lifting heights up to 31.0 m Used mini crane models on demand until 8.0 t loading capacity.Mostrar mais

Mini & Mobile Cranes Körner GmbH

Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen Alemanha
