Metso RCS 5

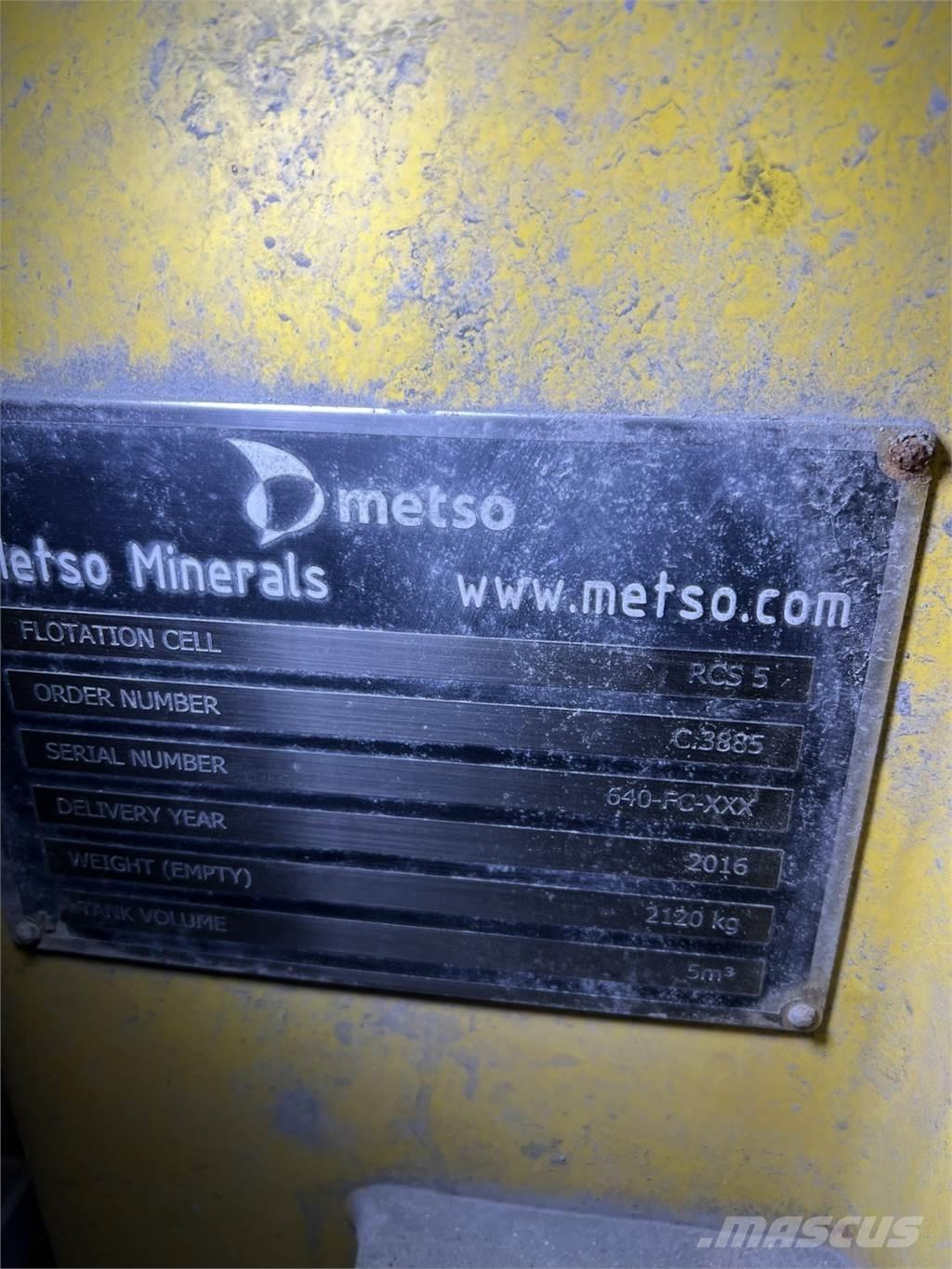

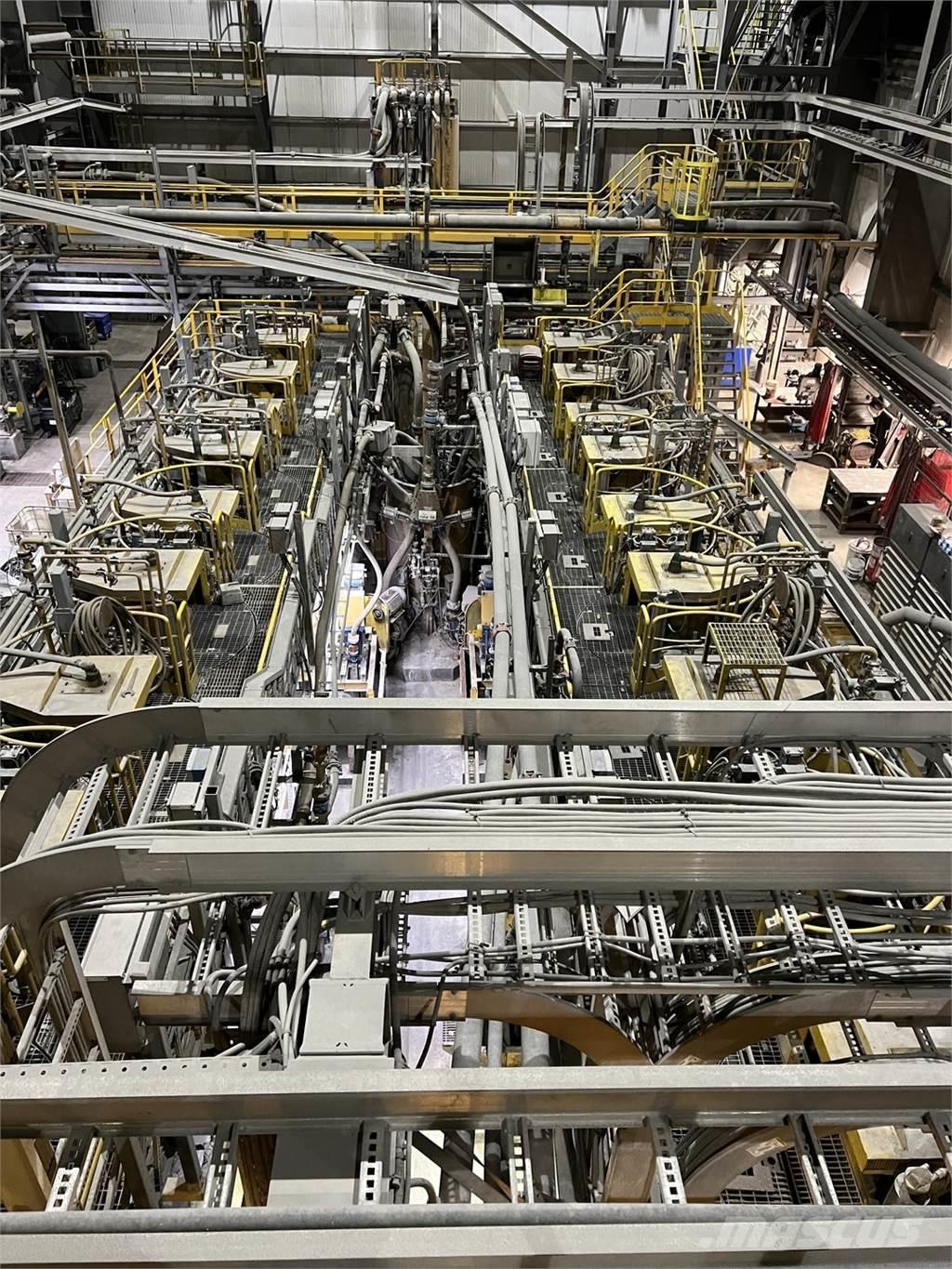

2016 Metso RCS 5 9-Cell Cleaner/Rougher Flotation Circuit System – Mining Mining Equipment Title: 9-Cell Cleaner/Rougher Flotation Circuit System RCS 5 SKU: 137931 Model: RCS 5 Year: 2016 Condition: Used S/N: 640-FC-XXX [PDF Manual](... General Arrangement](... Mechanical Drawing Pkg](... No.: C.3842 Number of lines: 1 Number of cells/line: 9 Bank arrangement: FB-1-FB-1-FB-2-2-3-DB Cell type: RCS 5 General Specifications Tank Diameter: 2000 mm Tank Height: 2076 mm Cell/Tank volume: 5 m3 Cells, feed and discharge box lining: Rubber lined in high wear areas with Natural rubber. Impeller and diffuser material: Moulded polyurethane on carbon steel skeleton Air requirement/bank: 27 Nm3 free air delivered at 19 kPag at shaft Motor/cell: 15 kW, 6-pole Supply voltage : 575/600 V, 3Ph, 60 Hz. Connections Feed box, opening: 620 x 320 mm Froth Outlet: 10" ANSI B16.5 150# Air Control Flange: 2" ANSI B16.5 150# Drain Flange: 6" ANSI B16.5 150#
