Histórico de serviço completo
Sim
Fabricante do Motor
PERKINS
Tipo de perfuradora
Geotec
Sistema de arrefecimento
Água
Mecanismo de alimentação
Cilindro
Marca do manipulador de varas
GEOTEC
Diâmetro do furo
"115-203 mm 4 1/2""-8""
Diâmetro das varas/tubos
"140 mm 5 1/2"""
Tipo de transportador
De lagartas
Informações sobre a condição/garantia
1000 Motogodzin - 1 rok
Peso de transporte
3 000 kg
Dimensőes em transporte (CxLxA)
4970 x 1200 x 2150 mm
Outras informaçőes

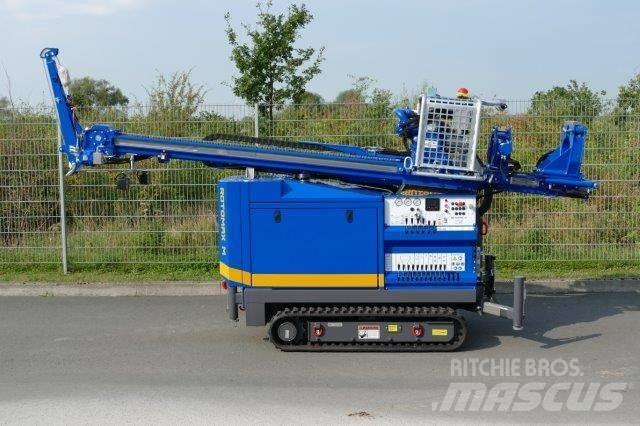

Base frame:
Sandwich main base frame with integrated fuel /
hydraulic oil tank for about 70 l diesel and about 150 l hydraulic oil (HLP 46) 4 pieces hydraulic cylinder for alignment of the machine; rubber crawler track with 250 mm as ridgid undercarriage 1200 mm.
Note: Undercarriage with extendable track
against surcharge.
Drive unit:
4-cylinder diesel engine 50 kw / 68 hp, water cooled with direct drive axial piston pump, oil cooler, oil supply / return line filters, sound cannon, emission standard according to EU Directive EU Stufe V / US EPA Tier 4
Basic hydraulic system:
Single circuit load sensing system,
proportional, directly or by remote control. Maximum pump capacity 105 l at 2400 U / min, max. System pressure: 190 bar 3 manometer, (system pressure, mud pressure, pull down)
Mast Standard:
Feeding slide out in track rollers, with release plate to accommodate different power swivel; Movement length: see drawing; pull up – pull down force 4000 kg; pull down pressure throttled to about 1000 kg so that it can not liftig the maschine mast side.
Hand control functions "main group"

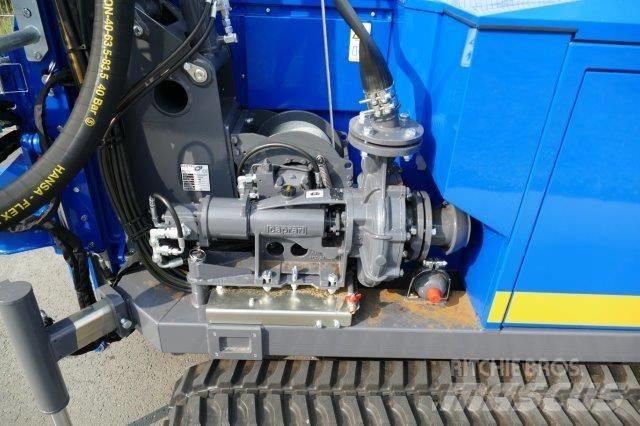

Power swivel; feed; mud pump; winch; crawler track right; crawler track left, a total of 6 valves
depending on the equipment
Crawler track control via cable remote control, drilling operation manually via control valves.
Note: Drilling operation alternative with
cable remote control for against
surcharge
Hand control function "auxiliary function"
Supports clinder up / down; crawler track with sliding; Mast erection; Mast extension; power swivel tillt; bracing clamp (casing); drill pipe Press / pul upl clamp a total of 10 valves
depending on the equipment
Mast-sided support:
Support cylinder of 850 mm to 1400 mm telescopic to increase the stability of the rig during the drilling operation
Power swivel to direct flush drilling:
hydraulic switchable 3-speed gearbox with directly flow passage, torque Nm 4400/2200/1100; rotation speed 0-50 / 0-100 / 0-200 rpm; mud pressure 25 bar and tilt device to 65 °
Power swivel folding and power swivel tilting device:
Manual unfold for pipe diameter 219 mm Swivel mechanism of the power swivel incl. check valve, lowering brake valve and control valves.
Swing-out angle with mud goseneck 65 °
Note: Hydraulic sideshift against surcharge.
Flood lights on mast head
2 pluggable headlamp mounted
Incl. cable and electric
Training
for 2-3 members for customer’s staff at our site in Nordkichen for 2 days (travel expensens not included)Mostrar mais
