Vahva FORTI 200

Preço sem IVA

Compnay LOGO
Images6Videos1

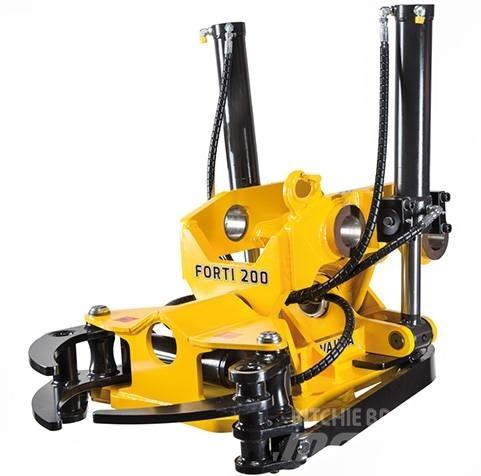

Vahva FORTI 200 Rotadores
Vahva FORTI 200 Rotadores
FavoriteFavorito
sharePartilhar
Save searchGuardar pesquisa
Imprimir

INFO

Grupo de produtos
Rotadores
Marca / modelo
Vahva FORTI 200
Ano de fabrico
2015
Condição
Equipamento demonstração
Localização da máquina
Saue
País
Estónia
Grau geral
1
2
3
4
5
Mascus ID
24BE0111

PREÇO

Escolher moeda

DETALHES

N°. de ref. de armazém
VR50000
Histórico de serviço completo
Sim
Serve para os seguintes equipamentos:
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

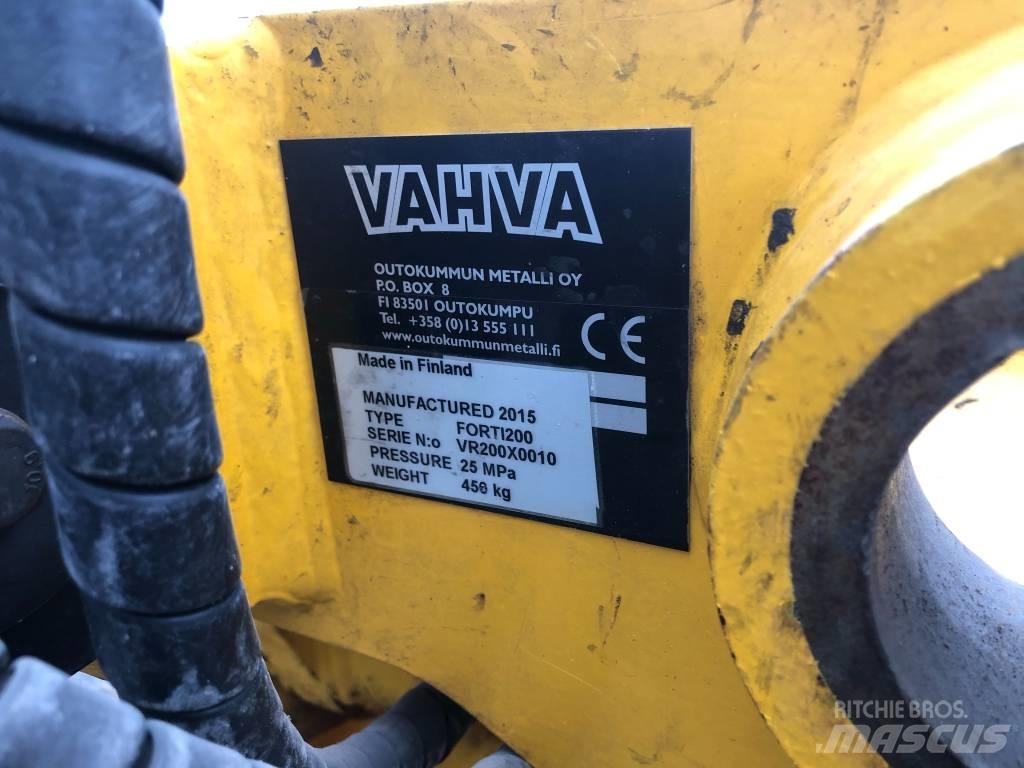

Número de série
VR200X0010
Pressão
250 bar
Caudal hidráulico necessário
80 l/min
Peso de transporte
450 kg
Dimensőes em transporte (CxLxA)
990 x 720 x 280 mm
País de fabrico
Finlândia
Condições de entrega
EXW
Certificados
CE
Outras informaçőes
A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.Mostrar mais
