Dimensões do espaço de carga (CxLxA)
37502100700-1225 m
Dimensőes em transporte (CxLxA)
495023101.8-2.225 m
Capacidade máxima de carga
9,70 m3
Acessórios
- Haakeseade 50mm pöörlev silmus
- Balanssiirsild
- Hüdrauliline ehitusluuk
- Ülevalt rippuv tagaluuk
- Eemaldatavad kastikõrgendused + 4,3 m3
Outras informaçőes
WHY CHOOSE A DUMP TRAILER?

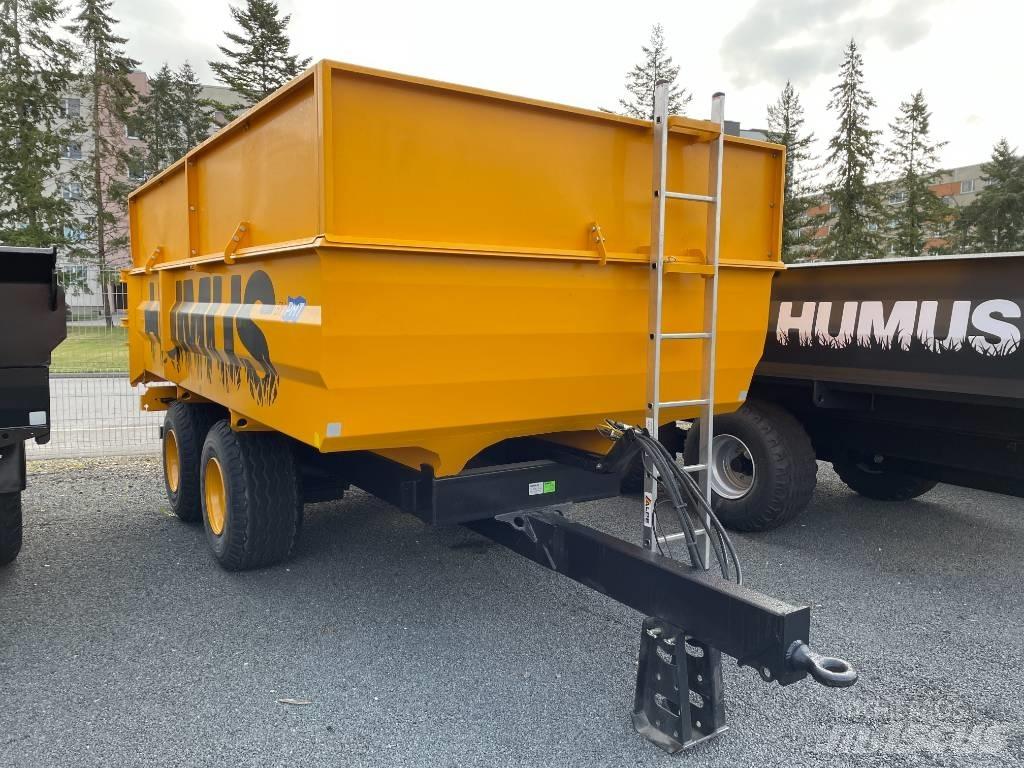

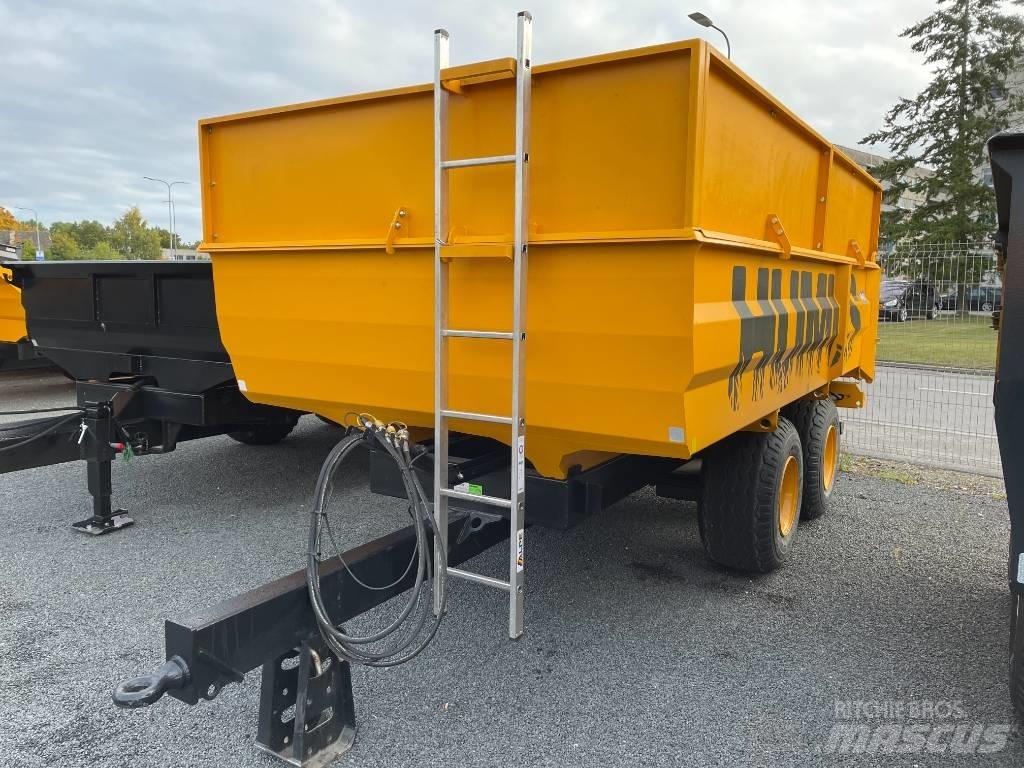

Humus dump trailers for agriculture sector are a good answer if you need a reliable solution that can handle different type of tough jobs. The Humus 9ST dump trailer suits well with a smaller tractor.
WHY HUMUS 9ST?
Farmers have chosen Humus 9ST because it's easy to use and helps them increase their efficiency for the following reasons:
The Humus 9ST tractor trailer has a bogie axle, which helps to cover difficult terrain and hydraulic brakes;
The Humus 9ST trailer tilts up to 60 degrees and so it's easier and faster to get the material off the box;
Minimum number of parts have been used to produce the box, so the box is very strong;
Two back hatches are in standard - the construction hatch and up-hanging hatch.
EASE OF USE AND ACCESSORIES
Transportation of the trailer and transportation of materials and machinery with the trailer is simple because:
It’s very easy to attach the trailer into a truck load because it has 4 attachment points beneath the box;
It’s very easy to transport machinery and materials with the trailer because in standard solution it has 4 fastening hooks inside and 4 outside of the box to fasten the load.
Great selection of accessories enables to configure the trailer as needed for the customer for example with:
Side extensions, which increase the capacity of the box with additional 4,2 cubic meters;
Side/up hanged back hatch;
Service ladder;
LED lights
etc.
If you are machines dealer and would like to offer your clients modern, safe machines with good environmental performance, and low operating and maintenance costs then feel free to contact us by clicking here. 9ST SPECIFICATION
Length (mm): 4950
Width (mm): 2310
Height (mm): 1800 - 2225
Internal size of the box (mm): 3750/2100/700
S355 bottom and sides (mm): 4
Capacity (m³): 5,5/9,7
Unladen weight (kg): 2000
Maximum load capacity (kg): 9000
Total weight (kg): 11000
Speed limit (km/h): 40
Tilt angle (º): 60
Stubaxle bolt pattern: 6/205/160
Standard wheels: 400/60-15,5
Standard axle: bogie
Brakes (hydraulical): one axleMostrar mais
