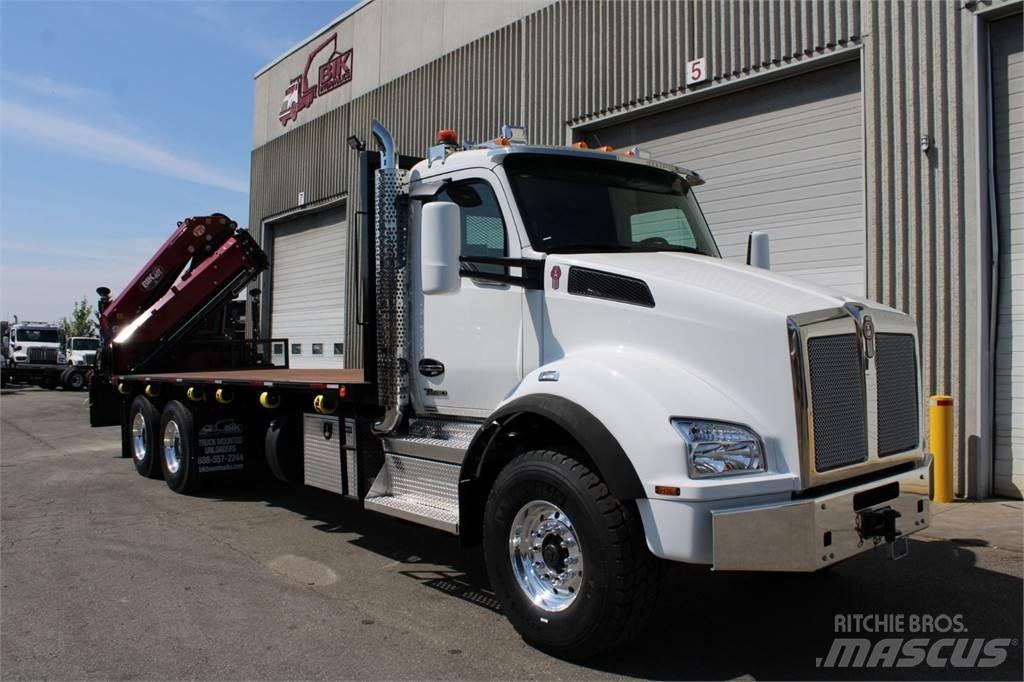

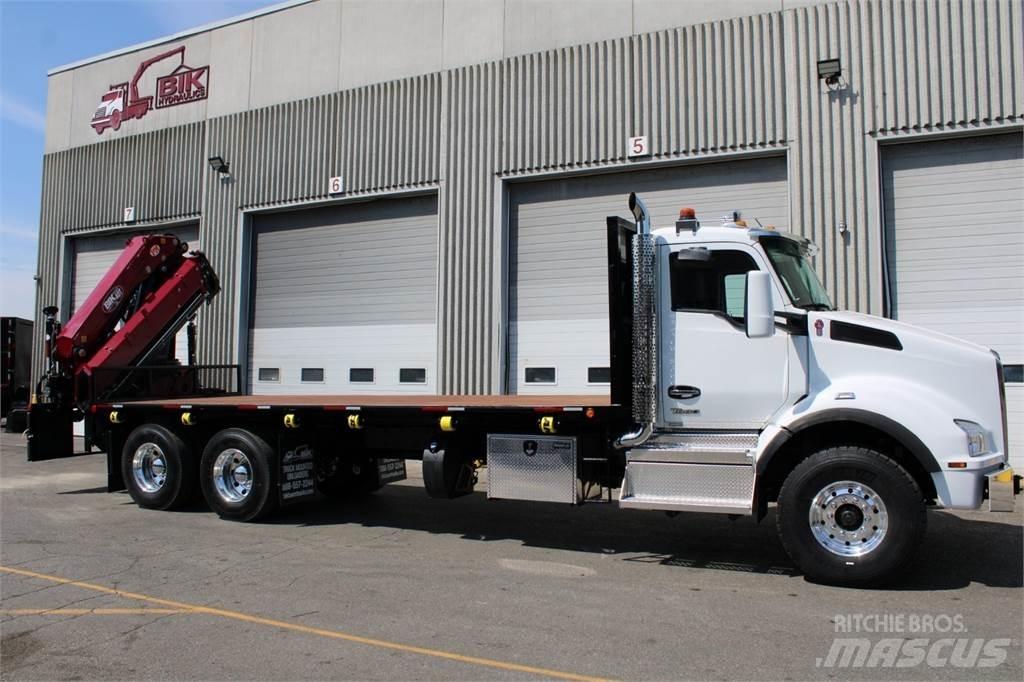

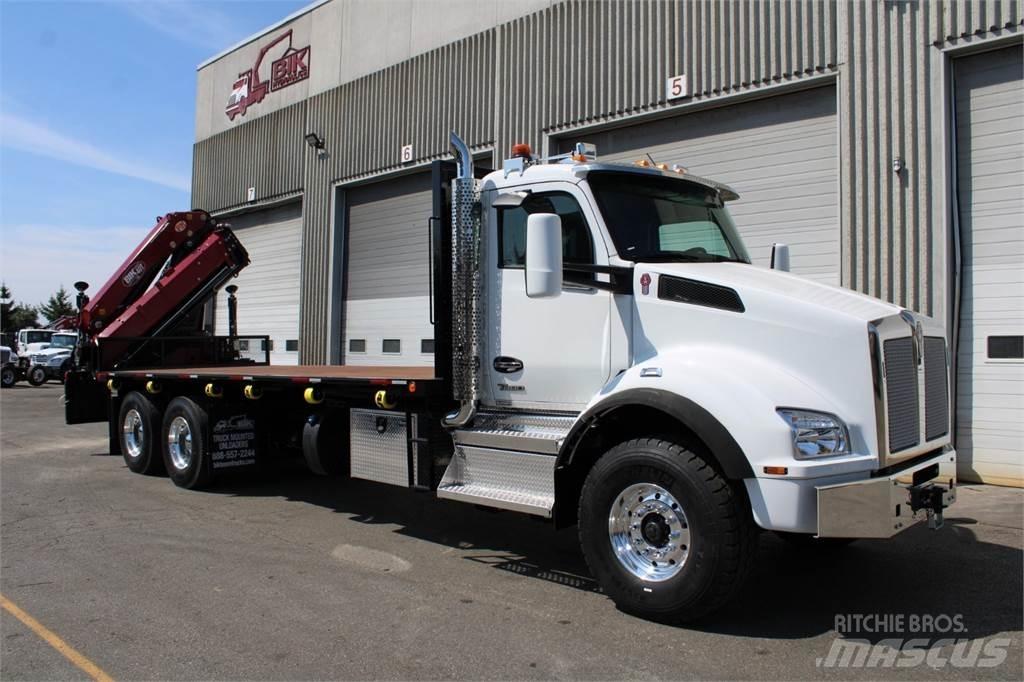

BIK HL 40T

Grua, Portas laterais, Auto-Rádio, Cruise control, Ar condicionado

Boom Details New – BIK “Heavy Lift” Series HL 40T PM 40 ton/m – Knuckle Boom, 3 – Independent hyd extensions to 34’ horizontal reach (45’ vertical) Horizontal Capacity 17,800 lbs ... 14.5′ 12,200 lbs ... 20′ 9,100 lbs ...28′ 7,150 lbs ... 34′ PLANETARY GEAR CONTINUOUS ROTATION  – Superior Control & Turning Torque to 10 deg angle – low maintenance Hydraulic Extra Wide Main outriggers at pedestal – 25’ 7” span Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom DANFOSS Proportional Valve Controls  – single sided operator control station SCANRECO Radio Remote Control  – electronically actuated controller, proportional precision and ultimate operator feel and control Radio Remote includes: 5-micro speed reducing settings from handheld unit, emergency stop, 2-batteries with charger, 50’ back-up cord Hydraulic OUT and Hydraulic DOWN  2-sided stabilizers w/ round foot pads welded to bottom of cylinder. Simplified Hydraulics – Hyd overload LLD protection  – Offers Simplicity, Reliability & low maintenance Load Holding Valves  on each cylinder for Safety and Security of Operator and Load Heavy Duty Pedestal Turning Cylinders  for greater turning torque, reduced wear, and improved precision Load Tested & Installed at rear, with integral sub-frame to meet or exceed all CMVSS Standards Deck Details New – 21.5′ Long x 102″ Hardwood Deck Installed on Truck, with 54” of main sill overhang for Sub-Frame of Knuckle Boom Hardwood Deck surface 66” Headboard Reverse Rail sliding track on passenger side 8 winches and straps (30’) with required Conspicuity and Reflectors. All steel painted Gloss Black. Truck Details New – Kenworth T880  3- axle Truck – 70,000 lb GVWR PACCAR  505 HP  / 1,850 ft/lb torque Eaton  Ultrashift 18 spd AutoTrans 20,000 LB fronts with 425 / 65R22.5 tires 46,000  LB Rears on air ride Double Frame, Polished ALCOA Alum Wheels  front and rear Chrome single polished Exhaust Chromed Grille & Bumper Single 100 gallon aluminum fuel tanks Options including:  Dual roof mounted strobe lights,  A/C, Tilt/Telescopic steering, AM/FM/CD player , Jake Brake,  air driver’s seat,  fixed  passenger seat, cruise, heated mirrors, painted sun visor, All-way inter-axle and diff lock-ups, Cab Painted White,  Air ride cab, full differential locks,  trailer air tow package, etc… Also Included Are: (2) pcs – Aluminum stabilizer pads with holders at rear Program radio remote control for engine stop/start and truck shut off 1” drawplate installed at rear w/Heavy duty pintle hook 1- Alum box installed under deck
