Classificação do camião (US)
Carga Pesada - Classe 7-8
Tipo de accionamento
Diesel
Direcção (lado do volante)
Mão esquerda
Potência do motor
371 kW (505 cv)
Fabricante do Motor
KENWORTH
Transmissão
Eaton Ultrashift Plus Automated 18 spd
Dimensão dos pneus dianteiros
425 / 65R22.5
Opçőes de carroceria
Portas laterais, Cruise control, Ar condicionado, Espelhos aquecidos, Espelhos eléctricos, Pala solar, Heater
Acessórios
A/C, Tilt/Telescopic steering, AM/FM stereo with Bluetooth, high back air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 6 wheel lock-ups, power windows and locks, Air ride cab, full differential locks, trailer air tow package, etc
Outras informaçőes
BOOM DETAILS
PM 100028-SP Knuckle Boom Folding Hyd 8 ext Knuckle Boom – 65’ Horizontal Reach (77’ vertical)
Horizontal Capacity:
36,800 lb @ 16’
20,100 lb @ 27’
16,000 lb @ 33’
13,000 lb @ 39’
9,300 lb @ 52’
6,000 lb @ 65’
PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
180-degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 30’ – 7” span – 360-degree full load chart stability
Hydraulic Oil Cooler, high-pressure return filter and min. 80–gallon hyd oil tank with gate valves mounted at the front under deck
Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, and backup cord – 5 level turtle (micro) slow-down mode
Simplified Hydraulic Overload System allowing maximized uptime and ease of maintenance
Manual Controls – Danfoss valve located on boom column with plastic cover and mechanical hour meter
Lifting Winch – 4-ton single-line pull winch that can be plumbed for up to 4 part line accessories
Crane Painted PM Blue – Certified Painting Quality System – Load Tested and certified
Installed at rear, with integral sub-frame, 3/8” front and centre -½” sheer plating at crane for maximized torsion strength.
Also Included:
Auxiliary Extra-Wide hydraulic outriggers 23’ spread front mounted for 360 degree stability
1” Drawplate Plate at rear w/pintle hook
36” Alum locking checker plate toolbox installed
(8) PVC stabilizer pads – with holders (4 pcs)
DECK DETAILS
22’ x 102” Steel Deck:
66” head board with window cut out with mesh
Steel checker plate Floor
Winch bar and holder
Integral steel sub-frame and extension at rear as torque box for boom with all proper engineered sheer planting
X-braces & support
2-Deck access Ladders, reflectors, conspicuity tape, Mud-flaps
6-Winches and tracks (sliding) under deck.
TRUCK DETAILS

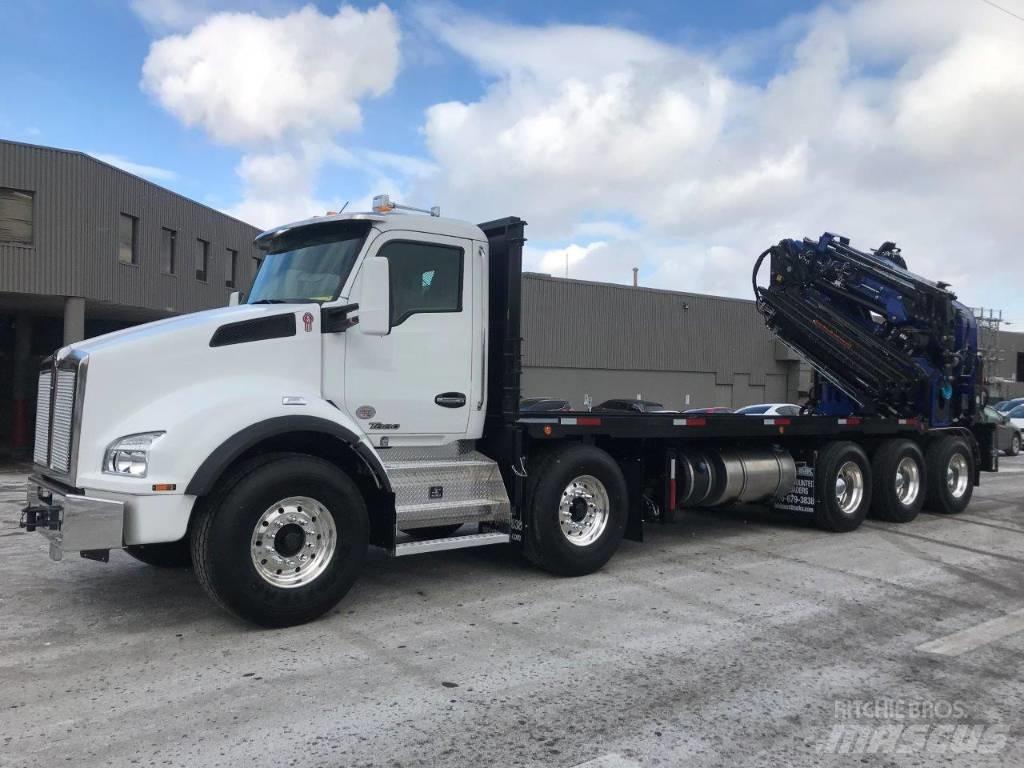

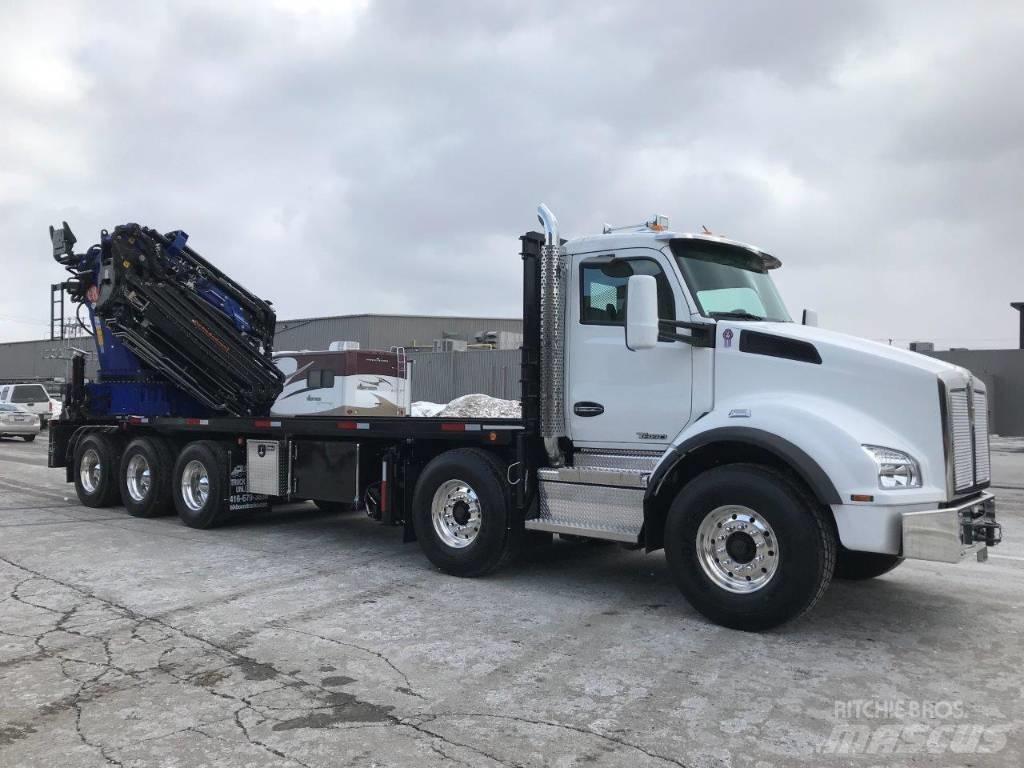

Used – 2018 Kenworth T880 T/A Steer – Tridrive (5 Axles total): 99,000 lb GVWR
Paccar 13L Diesel – 505 hp w/Jake – 1,850 ft/lb torque
Eaton Ultrashift Plus Automated 18 spd trans, Truck cab white
(2) x 20,000 LB fronts with 425 / 65R22.5 tires
69,000 LB Tridrive Rears on Hendrickson Primax Air Ride Susp. With 56” spread at t/a, Double Frame
Polished ALCOA Aluminum Wheels front and outer rear
Chrome single polished Exhaust, Chrome Grille & Bumper
120-gallon alum fuel tank
Loaded with Options Including: A/C, Tilt/Telescopic steering, AM/FM stereo with Bluetooth, high back air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 6 wheel lock-ups, power windows and locks, Air ride cab, full differential locksMostrar mais
