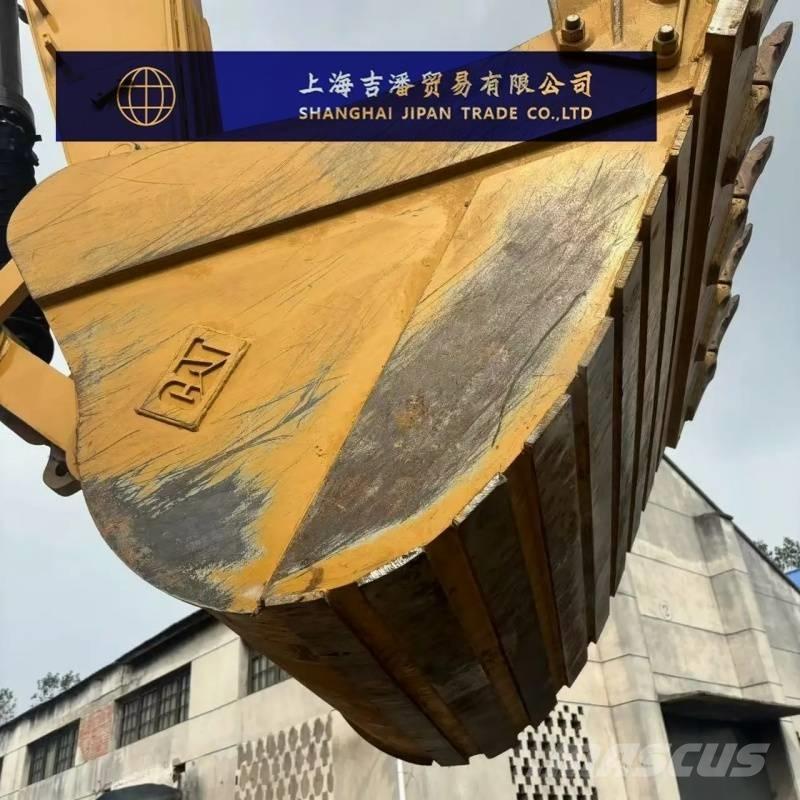

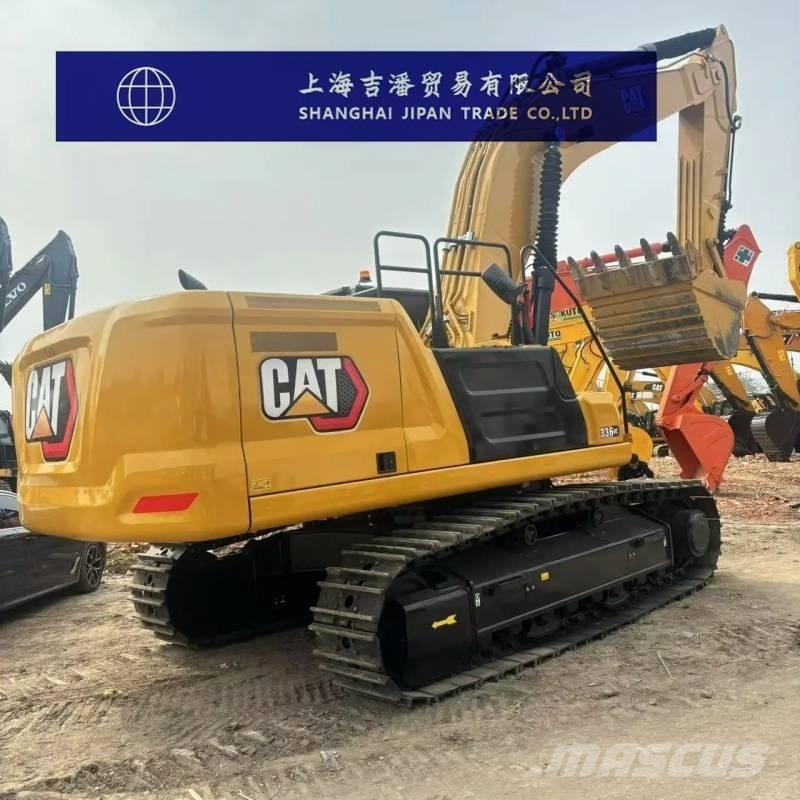

CAT 336 GC

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Parameter configuration of CAT336 GC hydraulic excavator Specification Tonnage (tons)36 The overall working weight of the machine (kg) is 35,400 Bucket capacity (m³):1.88 Boom length (mm):6500 The length of the boom (mm) is 3200 Performance Rotational speed (rpm)8.74 Rotary torque (Nm)137 Walking speed (km/h):4.7 Climbing ability:70% Bucket digging force (kN)197 Bucket shaft digging force (kN)148 Maximum traction force (kN):297 Power system Engine model: C7.1 ACERT Rated power (kw/rpm):195/2000 Displacement (L)7.1 Cylinder diameter × stroke (mm):105*135 Hydraulic system The maximum flow rate of the main pump (l/min) is 559 Walking hydraulic circuit (Mpa)35 Rotary hydraulic circuit (Mpa)28 Control hydraulic circuit (Mpa)35 Oil capacity Fuel tank (L)600 Hydraulic oil tank (L)153 Hydraulic System (L)373 Engine oil change volume (L):20 Coolant (L)19 Main body size Total transportation length (mm):11,170 The total transportation width (mm) is 3190 The total transportation height (mm) is 3170 The total length of the track (mm) is 5030 Track gauge (mm):2590 The ground clearance of the counterweight (mm) is 1250 Minimum ground clearance (mm)510 The center distance of the idler wheels (mm) is 3610 Rear end turning radius (mm)3530 Scope of work The maximum excavation radius of the shutdown face (mm) is 11050 Maximum excavation depth (mm):7520 Maximum excavation height (mm):10,300 Maximum unloading height (mm):7080 Maximum vertical excavation depth (mm):5660 Maximum effective excavation depth (mm):7360
