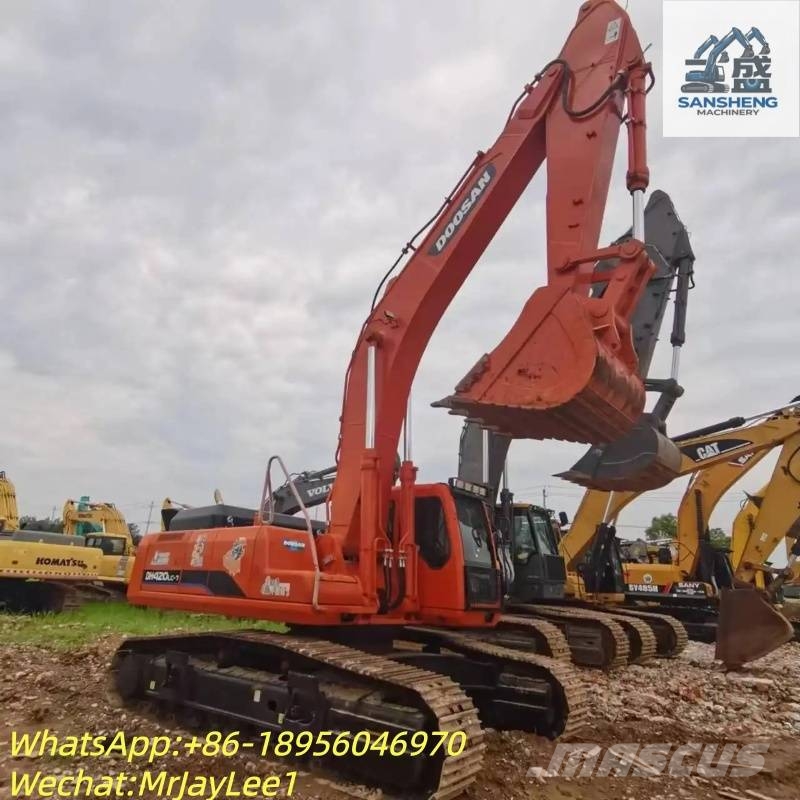

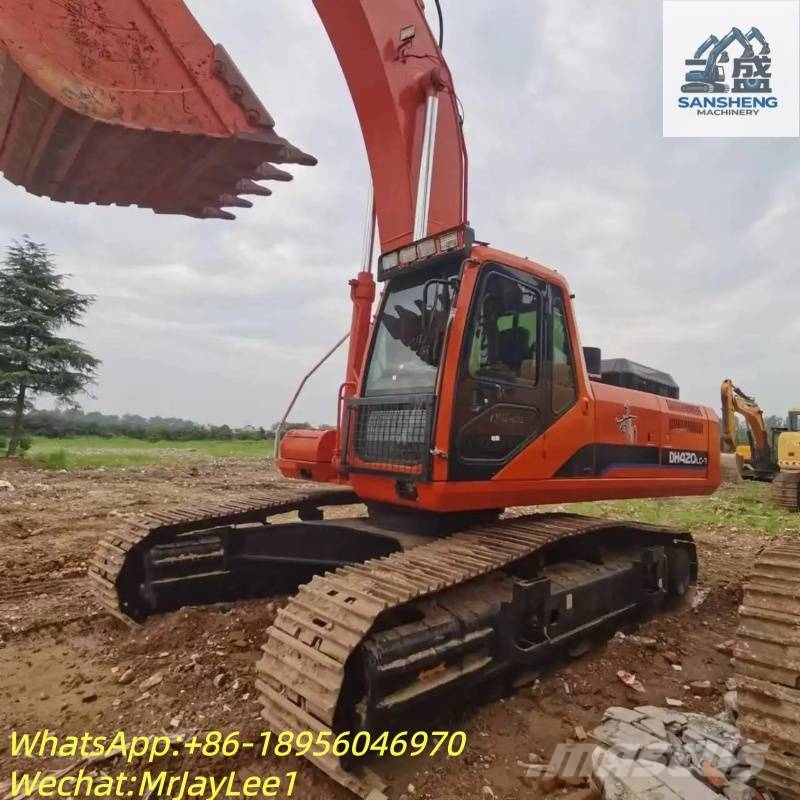

Doosan DH 420 LC-7

We supply a full range of excavator & machinery attachments: Rock Bucket, Skeleton Bucket, Loosening Bucket, Cleaning Bucket, Tilt Bucket, Ditch Bucket, Bucket Clamp,Clamshell Bucket, Rotary Screen,Crusher Bucket,Crushing & Screening Bucket, Rake, Ripper, Thumb Clip and Compaction Wheel Service Hours: 24/7 available Address: Hefei,Anhui, China Contact Person: Mr.Jay Lee WhatsApp:+86 18956046970 Mobile:+86 18956046970 WeChat: jayusedequipment Email: Packaging & Shipping Solutions We offer multiple shipping options to meet your demands: Flat Rack: Ideal for large construction machinery with no disassembly required. Container Shipment: Cost-effective and time- efficient Bulk Carrier:Perfect for oversized construction equipment. Ro-Ro Shipment: Fast delivery, applicable to all types

Overall machine weight (kg): 41200 Bucket capacity (m³): 1.44 - 2.18 L臂 length (mm)： 6700 Pole length (mm)： 2600/3250/4000 Origin： Shandong Yantai Tonnage (tons)： 42 Power： Traditional power Bucket： Counterbalanced bucket Manufacturer： Joint venture/imported Power： Traditional power Performance Rotation speed (rpm)： 9.5 Travel speed (km/h)： 3.3 - 5.5 Bucket digging force (kN)： 242.1/264.6 Pole digging force (kN)： 218.5/139.1； 176.4/193.1； 152.9/166.6 Power system Engine model： Doosan DE12TIS Rated power (kW/rpm)： 210/2000 Cooling method： Water cooling Hydraulic system Main pump type: Parallel double-axle axial piston pump Maximum flow rate of the main pump (l/min): 2×315 Working hydraulic oil circuit (MPa): Standard 31.4 / Boosted 34.3 Travel hydraulic circuit (MPa): 26.5 Rotation hydraulic circuit (MPa): 26.5 Pilot pump flow rate (L/min): 24 Main body dimensions Total transportation length (mm): 11690 Total transportation width (mm): 3350 Total transportation height (mm): 3575 Full height of the driver's cab (mm): 3150 Width of the vehicle body (mm): 2990 Clearance of the counterweight from the ground (mm): 1277 Track ground contact length (mm): 4250 Total track length (mm): 5215 Width of the track plate (mm): 600 Total width of the track (mm): 3350 Track gauge (mm): 2750 Minimum ground clearance (mm): 540 End rotation radius (mm): 3660 Operating range Maximum digging radius (mm): 11520 Maximum digging radius at the stop position (mm): 11310 Maximum digging depth (mm): 7725 Maximum digging height (mm): 11000 Maximum unloading height (mm): 7845 Maximum vertical digging depth (mm): 4400 Maximum effective digging depth (mm): 7570
