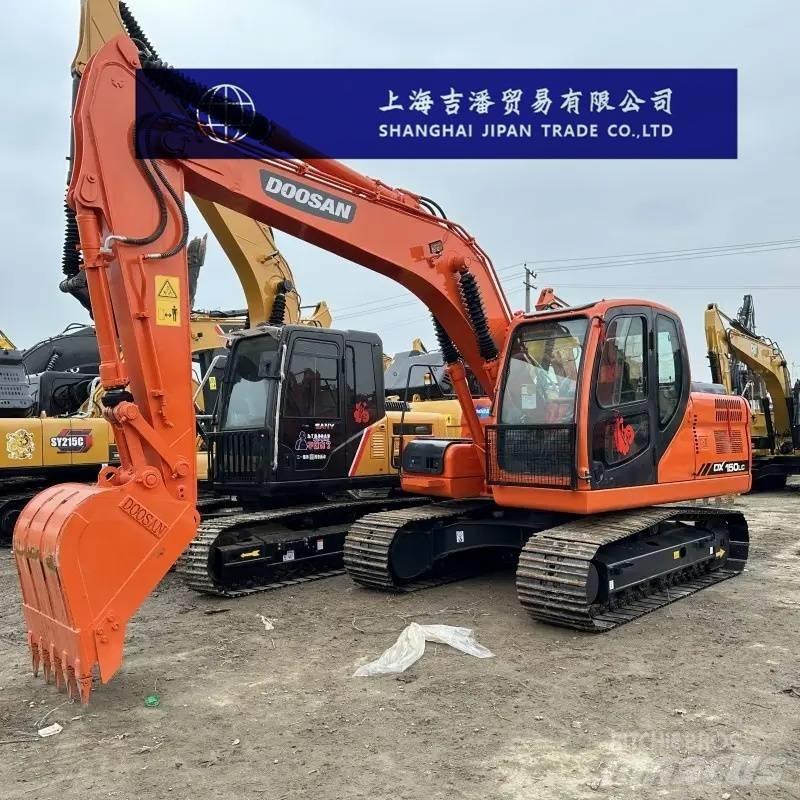

Doosan DX 150
Preço sem IVA
Imprimir
INFO
Grupo de produtos
Escavadoras de rastos
Marca / modelo
Doosan DX 150
Ano de fabrico
2023
Horas de utilização
600 h
País
China
Grau geral
1
2
3
4
5
Mascus ID
197FE6CE
PREÇO
Escolher moeda
DETALHES
N°. de ref. de armazém
1
Tipo de accionamento
Diesel
Número de série
1
Número de proprietários anteriores
1
Última inspecção
2025-07-02
Condição do chassi
Good Condition
Motor
Original
Peso bruto
14 000 kg
Potência do motor
71 kW (96,5 cv)
Fabricante do Motor
Original
Matrícula
1
Classe de emissão
Stage V
Capacidade do balde
0,58 m3
Largura Rastro
600 mm
Débito do equipamento hidráulico adicional
114 l/min
Velocidade máxima
4,90 km/h
Dimensőes em transporte (CxLxA)
7680 x 2590 x 2755 mm
Cor Original
Original
Informações sobre a condição/garantia
1 Year
País de fabrico
Coreia do Sul
Condições de entrega
FCA, FOB, CIF, EXW
Certificados
EPA, CE
Acessórios
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Acessórios
valvula de segurança da lança
caixa fios twig
Ar condicionado
Hidráulica adicional
Pré-filtro motor
Balde de esqueleto
Disjuntor Bateria
Farol Luz Rotativa
Aquecedor Gasóleo
Controlo por Joystick
Balde Escavação Standard
Cable bucket
V ditch bucket
Outras informaçőes

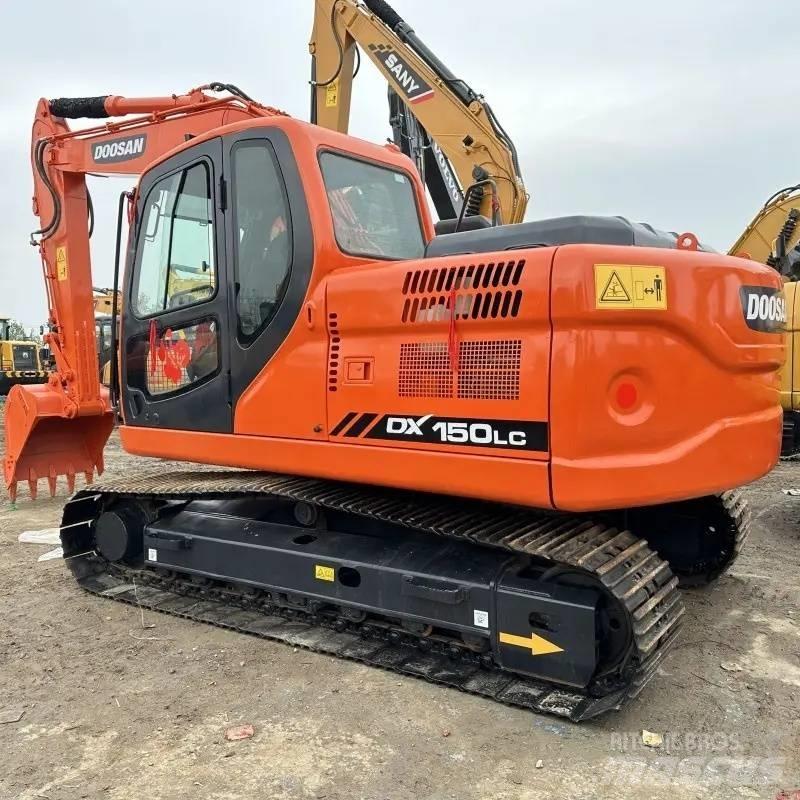

Parameter configuration of Doosan DX150LC excavator
Specification
Power Traditional Power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)15
The working weight of the entire machine (kg) is 14,000
Bucket capacity (m³) : 0.58
Origin: South Korea
Performance
Rotational speed (rpm) : 12.2
Rotary torque (Nm)40
Walking speed (km/h) : 4.9/3.0
The ground pressure (Kpa) is 34.3
Bucket digging force (kN)106
The digging force of the boom (kN) is 65
Power system
Engine model: DB58TIS
Rated power (kw/rpm) 71/1850
Number of cylinders (6
Cylinder diameter × stroke (mm)102×118
The working form is straightforward. Turbocharged, air-cooled
Hydraulic system
The main pump type is a variable piston pump
The type of walking hydraulic motor is axial piston type ×2
The type of rotary hydraulic motor is axial piston type ×1
The maximum flow rate of the main pump (l/min) is 2×114
The working hydraulic circuit (Mpa) standard is 32.4/ pressurized is 34.3
Walking hydraulic circuit (Mpa)32.4
Rotary hydraulic circuit (Mpa)26.5
Boom cylinders - Number × cylinder diameter × stroke (mm)2-110×75×10-85
Bucket rod cylinder - number × cylinder diameter × stroke (mm)1-115×80×1180
Bucket cylinder - number × cylinder diameter × stroke (mm)1-100×70×900
Oil capacity
Fuel tank (L)267
Hydraulic oil tank (L)147
Coolant (L)24
Main body size
The total length of transportation (mm) is 7680
The total transportation width (mm) is 2590
Total transportation height (mm) : 2755(to the top of the cab)
The total height of the cab (mm) is 2750
The width of the vehicle (mm) is 2540
The total length of the track (mm) is 3750
Track plate width (mm) : 600
Minimum ground clearance (mm)410
The ground clearance of the counterweight (mm) is 890
The minimum turning radius (mm) of the front working device is 2325
Rear end turning radius (mm)2200
Scope of work
Maximum excavation radius (mm) : 8305
The maximum excavation radius (mm) of the shutdown face is 8160
Maximum excavation depth (mm) : 5655
Maximum excavation height (mm) : 8750
Maximum unloading height (mm) : 6300
The maximum vertical excavation depth (mm) is 4450
Maximum effective excavation depth (mm) : 5430
