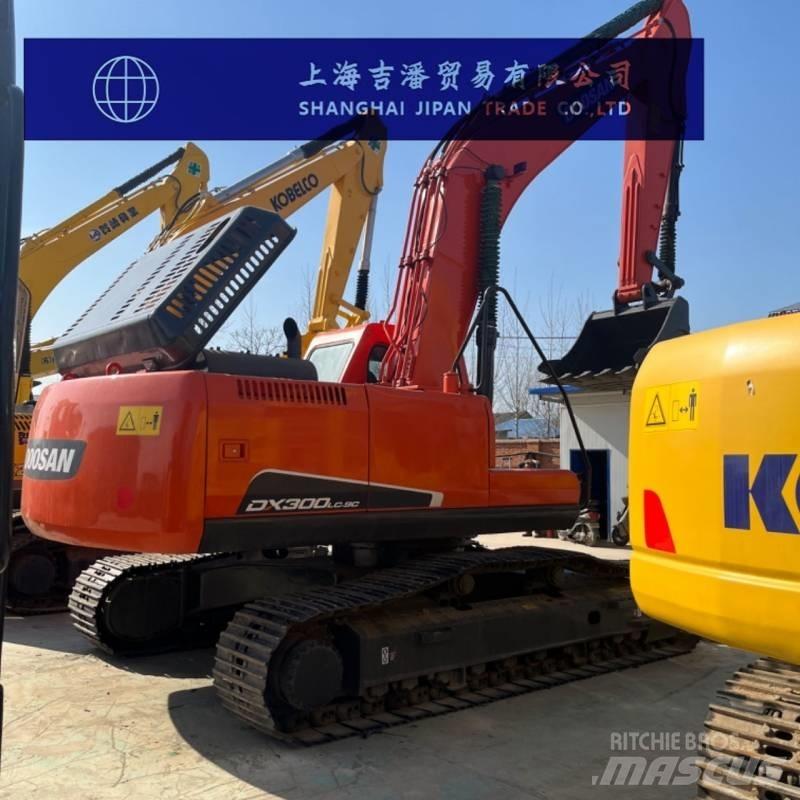

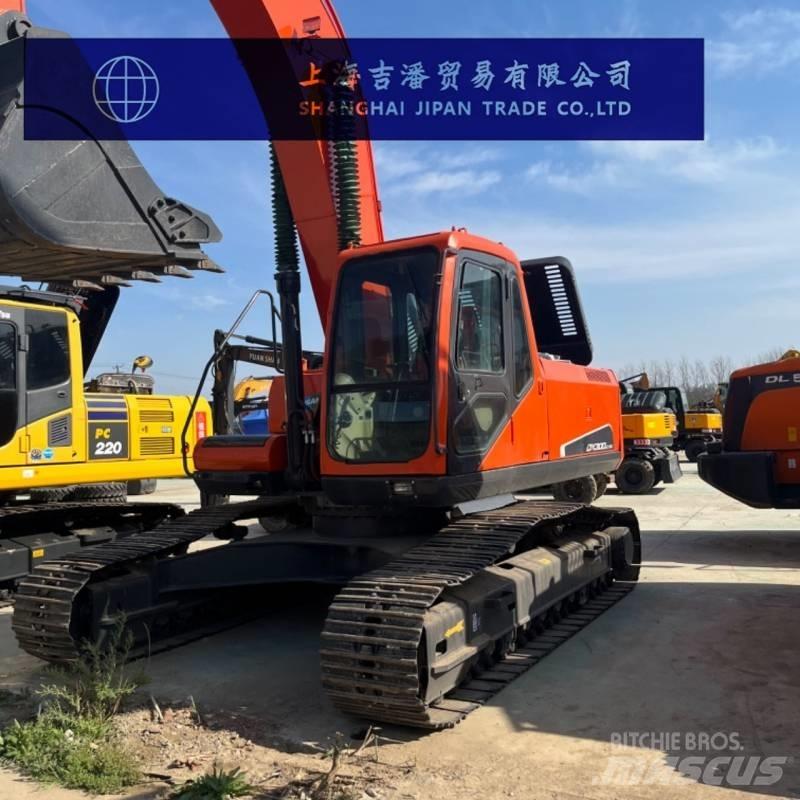

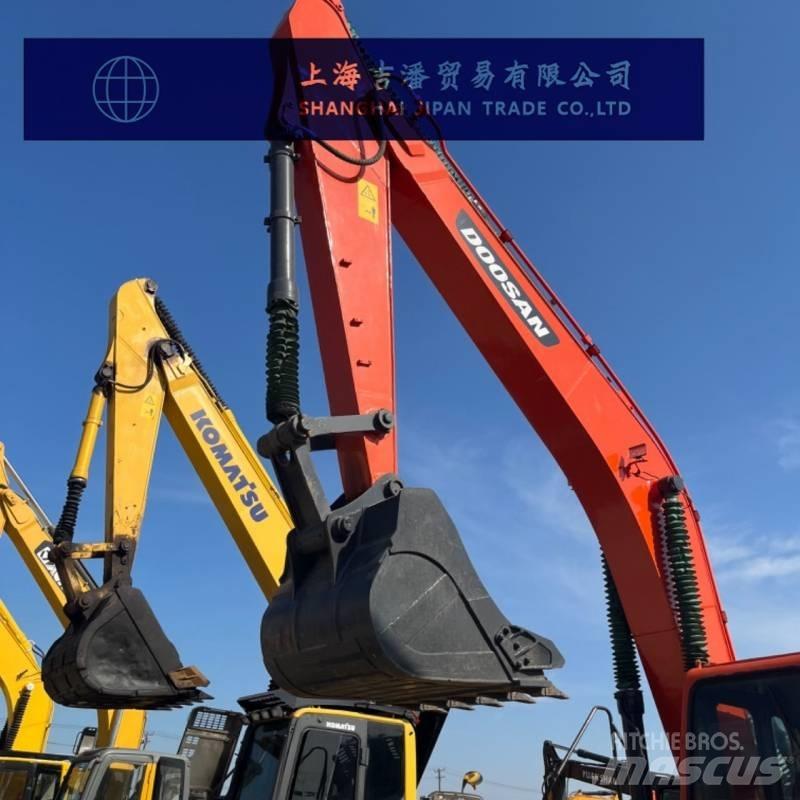

Doosan DX 300
Preço sem IVA
Imprimir
INFO
Grupo de produtos
Escavadoras de rastos
Marca / modelo
Doosan DX 300
Ano de fabrico
2024
Horas de utilização
600 h
País
China
Grau geral
1
2
3
4
5
Mascus ID
830BAC40
PREÇO
Escolher moeda
DETALHES
N°. de ref. de armazém
1
Tipo de accionamento
Diesel
Número de série
1
Número de proprietários anteriores
1
Última inspecção
2025-07-07
Condição do chassi
Good Condition
Motor
Original
Peso bruto
30 215 kg
Potência do motor
159 kW (216 cv)
Fabricante do Motor
Original
Matrícula
1
Classe de emissão
Stage V
Capacidade do balde
1,60 m3
Largura Rastro
600 mm
Débito do equipamento hidráulico adicional
248 l/min
Velocidade máxima
5,70 km/h
Dimensőes em transporte (CxLxA)
10615 x 3199 x 3515 mm
Cor Original
Original
Dipper / stick length
3 100 mm
Informações sobre a condição/garantia
1 Year
País de fabrico
Coreia do Sul
Condições de entrega
FCA, FOB, CIF, EXW
Certificados
EPA, CE
Acessórios
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Acessórios
valvula de segurança de braço
valvula de segurança da lança
caixa fios twig
Ar condicionado
Hidráulica adicional
Pré-filtro motor
Balde de esqueleto
Farol Luz Rotativa
Aquecedor Gasóleo
Controlo por Joystick
Balde Escavação Standard
Cable bucket
Ditching/grading bucket
V ditch bucket
Demolition/FOPS cab guard
Outras informaçőes
Parameter configuration of Doosan DX300LC-9C excavator
Specification
Power Traditional Power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)30
The overall working weight of the machine (kg) is 30,215
Bucket capacity (m³) : 1.45/1.6
Boom length (mm) : 6245
The length of the boom (mm) is 3100
Performance
Rotational speed (rpm) : 9.4
Rotary torque (Nm)11760
Walking speed (km/h) 5.7/3.2
The ground pressure (Kpa) is 0.57 kg/cm ²
Bucket digging force (kN) : 183.3
The digging force of the bucket arm (kN) is 128.4
Power system
Engine model: DL08
Rated power (kw/rpm) 159/1,900
Number of cylinders (6
Cylinder diameter × stroke (mm)108 *309
Hydraulic system
The main pump type is a variable piston pump
The maximum flow rate of the main pump (l/min) is 2*248
Oil capacity
Fuel tank (L)500
Hydraulic oil tank (L)280
Main body size
Total transportation length (mm) : 10,615
The total transportation width (mm) is 3199
The total transportation height (mm) is 3,515
Total track length (mm) : 4,940
Track plate width (mm) : 600
Total width of the tracks (mm) : 3,200
Minimum ground clearance (mm) : 506
The ground clearance of the counterweight (mm) is 1,150
Rear end turning radius (mm) : 3,188
Number of idler wheels (single side) (units)9
Number of idler wheels (single side) (units)2
Number of track plates (single side) (pieces)48
Scope of work
Maximum excavation radius (mm) : 10702
The maximum excavation radius of the shutdown face (mm) is 10506
Maximum excavation depth (mm) : 7275
Maximum excavation height (mm) : 10315
Maximum unloading height (mm) : 7303
Maximum vertical excavation depth (mm) : 4907
Maximum effective excavation depth (mm) : 6,455
