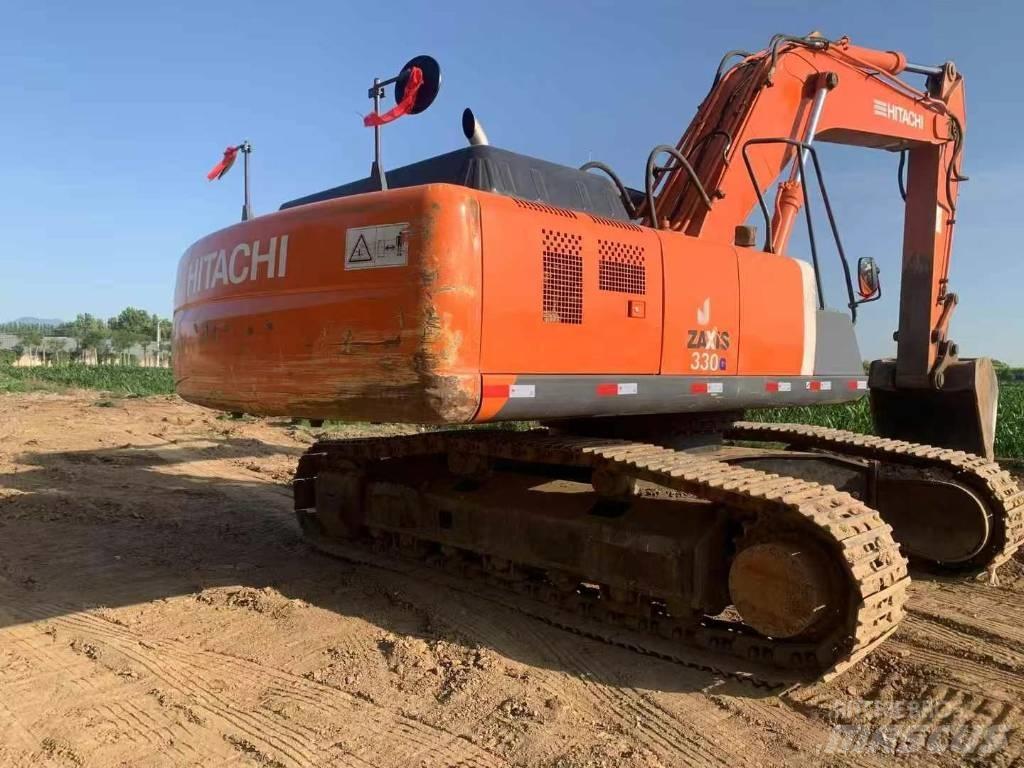

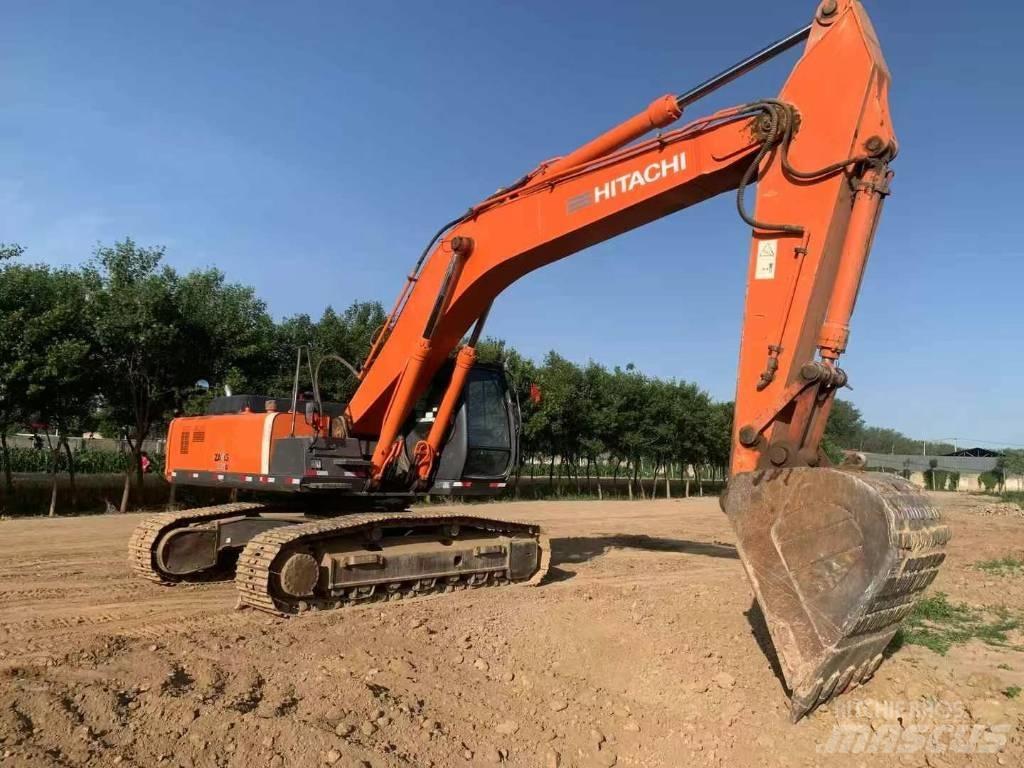

Hitachi ZAXIS330

Hello, I'm Gavin, specializing in the sales of construction machinery. We have been working in this industry for decades and have four large machine storage yards in Shanghai. If you are interested in any machines, please feel free to contact me. WhatsApp/WeChat: 0086 18019214942

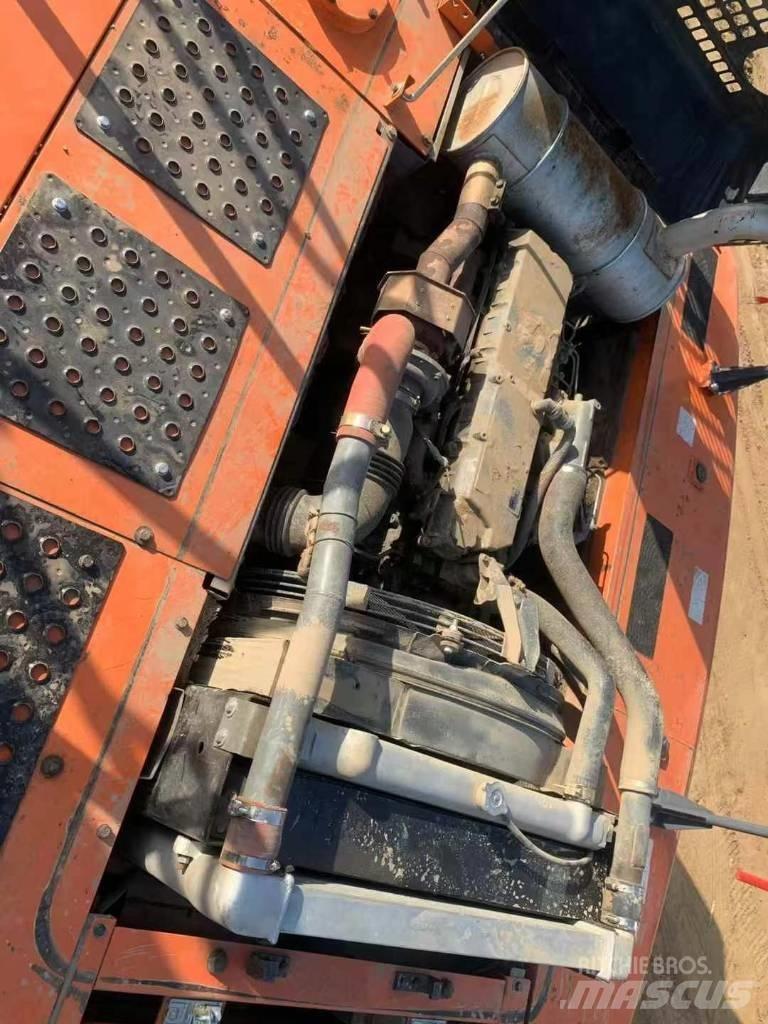

Power System: Engine Model: Isuzu AH-6HK1X. Rated Power: 202kW at 1900rpm. Displacement: 7.79L. Number of Cylinders: 6. Cooling Method: Water Cooling. Overall Machine Parameters: Overall Working Weight: 31600kg. Bucket Capacity: 1.38m³. Ground Pressure: 65kPa. Bucket Excavation Force: 234kN. Bucket Rod Excavation Force: 204kN. Hydraulic system: Main pump type: Variable axial piston pump × 2 + Gear pump × 1. Main pump maximum flow rate: 2 × 288 + 30.2 L/min. Working hydraulic oil circuit: 34.3 MPa. Travel hydraulic circuit: 34.3 MPa. Rotation hydraulic circuit: 32.4 MPa. Pilot oil circuit: 3.9 MPa. Oil capacity: Fuel tank: 630 L. Hydraulic oil tank: 180 L. Engine oil replacement volume: 41 L. Coolant: 32 L. Main body dimensions: Total transportation length: 11000 mm. Total transportation width: 3190 mm. Total transportation height: 3270 mm. Track ground length: 3730 mm. Total track length: 4640 mm. Track plate width: 600 mm. Track gauge: 2590 mm. Minimum ground clearance: 500 mm. Rear end rotation radius: 3390 mm. Working range: Maximum digging radius: 11100 mm. Maximum digging depth: 7380 mm. Maximum digging height: 10360 mm. Maximum unloading height: 7240 mm. Performance parameters: Rotation speed: 10.7 rpm. Travel speed: 3.2/5.0 km/h. Climbing ability: 70%/35°.
