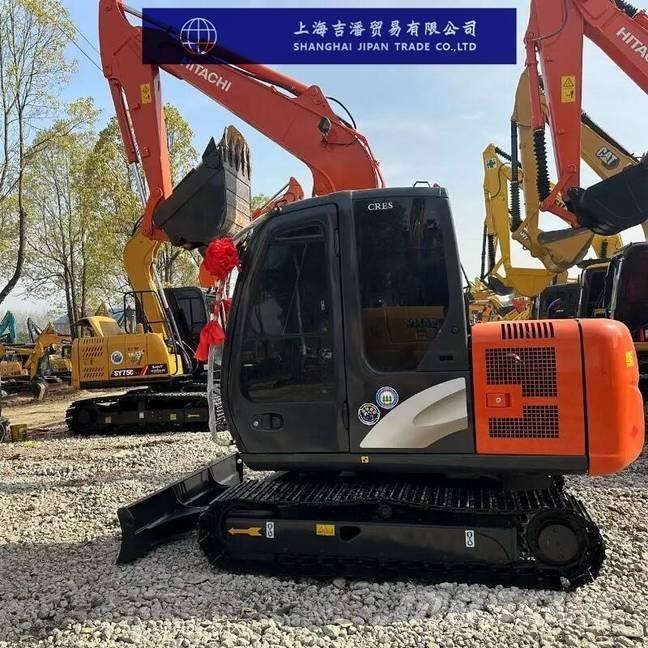

Hitachi ZX 60

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Hitachi ZX60-5A Excavator Parameter Configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 6 The working weight of the whole machine (kg) is 5960 Bucket capacity (m³) 0.24 performance Rotation speed (rpm) 9.1 Slewing torque (Nm) 10 Travel speed (km/h) 0-4.5/0-2.5 high/low Climbing ability (%) 70% (35°) Grounding specific pressure (Kpa) 31 Bucket digging force (kN) 41.4 Bucket digging force (kN) 28.4 Maximum traction (kN) 38.5 dynamical system Engine model 4TNV98 Rated power (kw/rpm) 42.4/2100 Maximum torque (N.m) 236/1350 Displacement (L) 3.318 Number of cylinders (units) 4 Bore × stroke (mm) 98×110 Cooling method: Water cooling Working form 4-stroke, water-cooled, direct injection Hydraulic system Main pump type 3 variable axial piston pump Slewing hydraulic motor type 1 axial plunger motor Traveling hydraulic motor type 2 variable axial plunger motor The maximum flow rate of the main pump (l/min) is 2×52.5 Pilot pump flow rate (L/min) 9.5 Pilot oil circuit (MPa) 3.9 Working Hydraulic Oil Circuit (Mpa) 24.5 Traveling hydraulic circuit (Mpa) 24.5 Slewing hydraulic circuit (Mpa) 17.6 Boom cylinder - number of × bore × stroke (mm) 1×105×60 Bucket cylinder - number × bore × stroke (mm) 1×85×55 Bucket cylinder - number × bore × stroke (mm) 1×80×50 Oil capacity Fuel tank (L) 120 Hydraulic Tank (L) 60 Hydraulic System (L) 93 Engine oil change volume (L) 12.3 Coolant (L) 8 Body size Total length of transport (mm) 6060 Total Transport Width (mm) 2060 Total height of transport (mm) 2085 Cab total height (mm) 2475 Mount width (mm) 2060 Track shoe width (mm) 400 Track gauge (mm) 1600 Counterweight ground clearance (mm) 620 Minimum ground clearance (mm) 310 The minimum turning radius of the front working device (mm) is 2510 Rear end turning radius (mm) 1650 Number of support wheels (one side) (pcs) 1 Number of Track Shoes (Single Side) (Pieces) 39 Number of support wheels (unilateral) (pieces) 5 Scope of work Maximum digging radius (mm) 6250 The maximum excavation radius of the shutdown surface (mm) is 6130 Maximum digging depth (mm) 3850 Maximum digging height (mm) 5800 Maximum unloading height (mm) 4080 Maximum vertical digging depth (mm) 3440 The width × height of the bulldozer plate (mm) is 2000×400 Bulldozer shovel lifting or pushing depth (mm) 430×400
