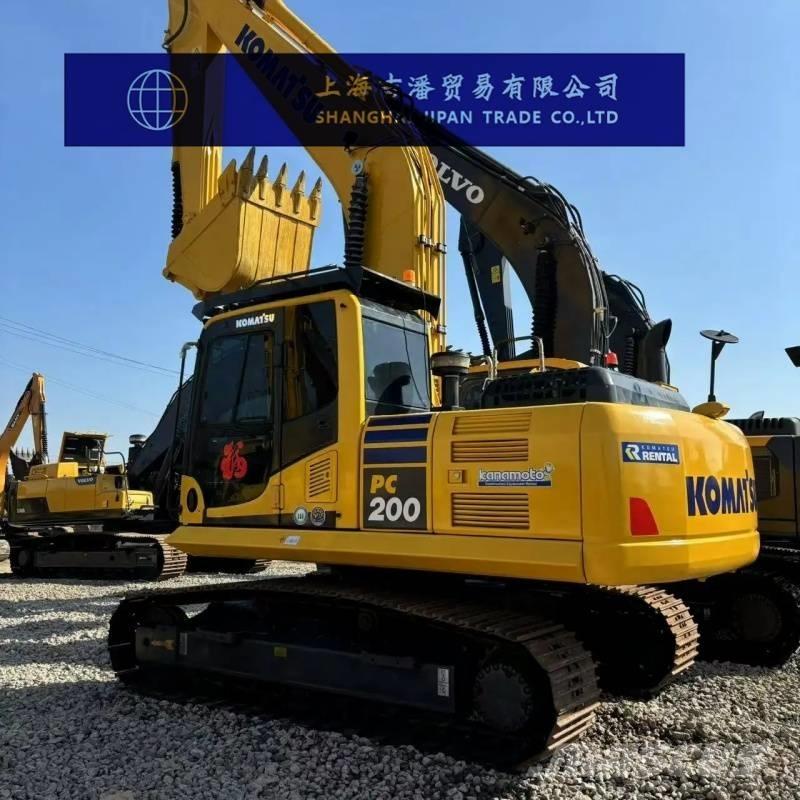

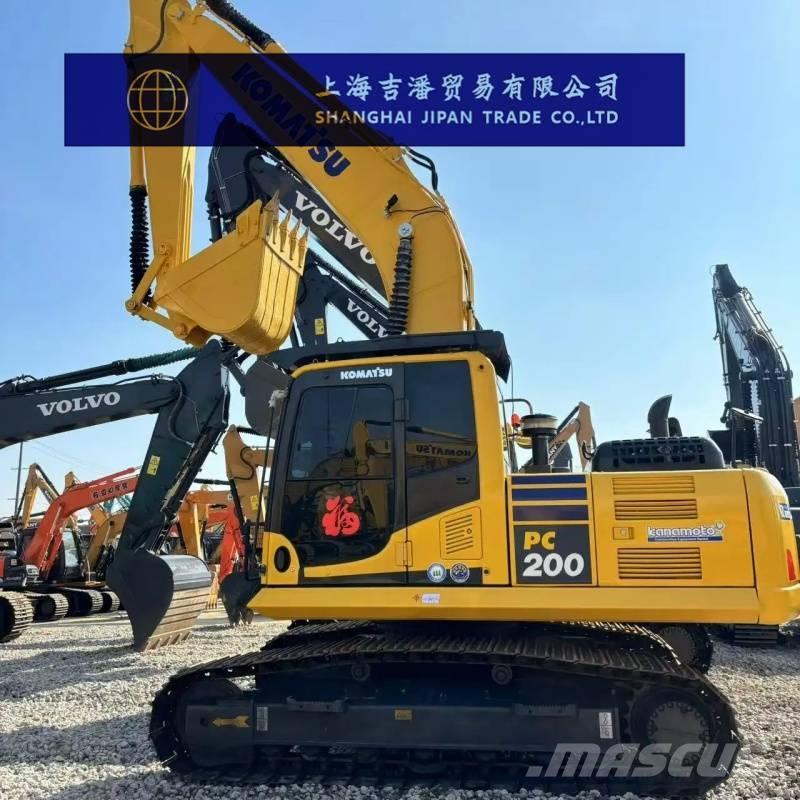

Komatsu PC 200-8

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Engine Item Details Model Komatsu SAA6D107E - 1 Type 6 - cylinder, 4 - cycle, water - cooled, direct injection, turbocharged with aftercooler Displacement 6.69 L (408 cu in) Gross Power (SAE J1995) 155 hp (116 kW) @ 2000 rpm Net Power (ISO 9249 / SAE J1349) 148 hp (110 kW) @ 2000 rpm Emission Standard Complies with EPA Tier 3 standards Governor Electronic governor for all speeds Operating Weight & Bucket Item Details Operating Weight 19,900 kg (43,872 lb) with 600 mm triple grouser shoes; 20,200 kg (44,533 lb) with 700 mm shoes; 20,500 kg (45,195 lb) with 800 mm shoes Bucket Capacity 0.5 - 1.2 m³ (0.66 - 1.57 yd³); Standard capacity is 0.8 m³ (1.05 yd³) Max Bucket Digging Force (ISO) 149 kN (15,200 kgf) Max Arm Digging Force (ISO) 108 kN (11,000 kgf) Dimensions Item Specifications (with 2410 mm arm / 2925 mm arm) Overall Length 9,490 mm (31’2”) / 9,425 mm (30’11”) Transport Length on Ground 5,700 mm (18’8”) / 4,815 mm (15’10”) Overall Height (to top of boom) 3,190 mm (10’6”) / 2,970 mm (9’9”) Height to Top of Cab 3,040 mm (10’0”) Overall Width (outside of tracks) 2,800 - 2,900 mm (9’2” - 9’10”) Tail Swing Radius 2,710 - 2,750 mm (8’11” - 9’0”) Track Gauge 2,200 mm (7’3”) Track Length on Ground 3,275 mm (10’9”) Total Track Length 4,070 mm (13’4”) Minimum Ground Clearance 440 mm (1’5”) Counterweight Ground Clearance 1,085 mm (3’7”) Performance Item Details Travel Speed Low: 3.0 km/h (1.9 mph); Medium: 4.1 km/h (2.5 mph); High: 5.5 km/h (3.4 mph) Swing Speed 12.4 rpm Swing Torque 6,900 kgf·m (49,907 lb·ft) Gradeability 70% (35°) Ground Pressure 46.1 kPa (6.69 psi) with 600 mm shoes; 40.2 kPa (5.83 psi) with 700 mm shoes Hydraulic System Item Details Main Pump Max Flow 116 gal/min (439 L/min) Hydraulic Circuit Pressure Travel circuit: 37.3 MPa; Swing circuit: 28.9 MPa; Pilot circuit: 3.2 MPa Hydraulic Motor Type Travel: 2 axial piston motors (with parking brake); Swing: 1 axial piston motor (with swing holding valve) Hydraulic Tank Capacity 135 L (35.7 gal) Fluid Capacities Item Capacity Fuel Tank 400 L (105.7 gal) Engine Oil Capacity 23.1 L (6.1 gal) Cooling System Fluid Capacity 20.4 L (5.4 gal) Swing Drive Fluid Capacity 6.6 L (1.7 gal) per unit Final Drive Fluid Capacity 3.3 L per side Electrical & Other Systems Item Details Operating Voltage 24 V Alternator Output 50 A Control System 7 - inch color LCD monitor with 12 - language display Swing Mechanism Planetary gear reduction; Grease - bath lubricated swing circle; Mechanical disc swing holding brake
