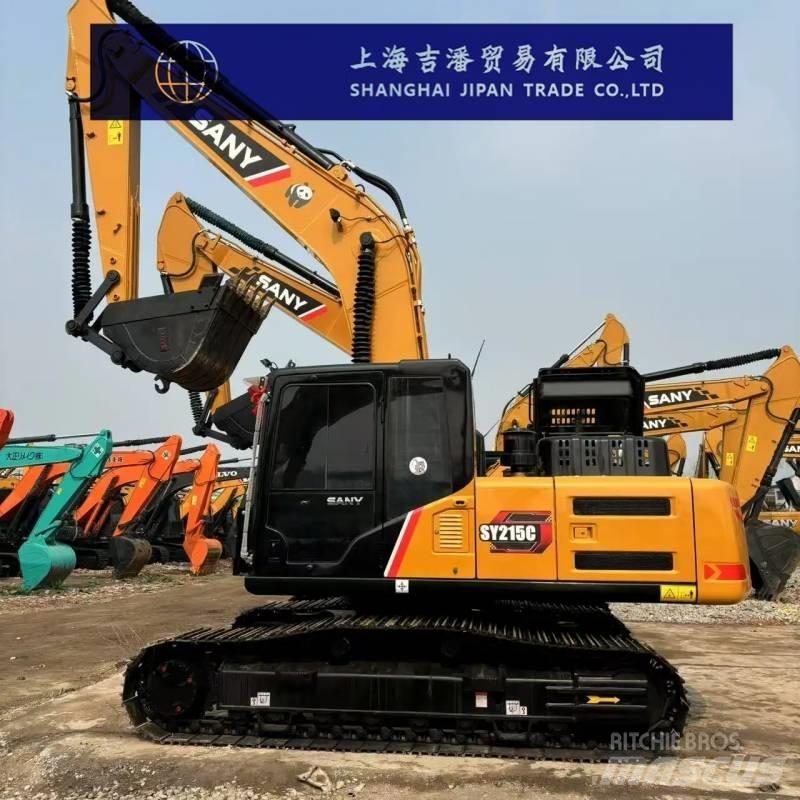

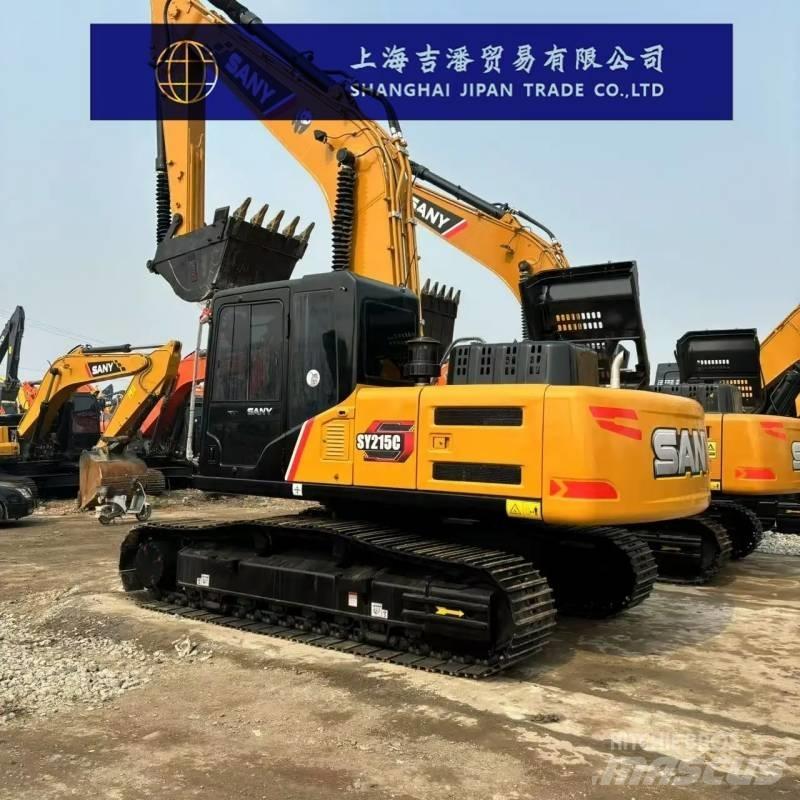

Sany SY 215 C
Preço sem IVA
Imprimir
INFO
Grupo de produtos
Escavadoras de rastos
Marca / modelo
Sany SY 215 C
Ano de fabrico
2024
Horas de utilização
500 h
País
China
Grau geral
1
2
3
4
5
Mascus ID
90ADFB0C
PREÇO
Escolher moeda
DETALHES
N°. de ref. de armazém
1
Tipo de accionamento
Diesel
Número de série
1
Número de proprietários anteriores
1
Última inspecção
2025-06-26
Condição do chassi
Good Condition
Motor
Original
Peso bruto
21 900 kg
Potência do motor
118 kW (160 cv)
Fabricante do Motor
Original
Matrícula
1
Classe de emissão
Stage V
Capacidade do balde
1,10 m3
Largura Rastro
600 mm
Velocidade máxima
5,50 km/h
Dimensőes em transporte (CxLxA)
9680 x 2980 x 3440 mm
Cor Original
Original
Informações sobre a condição/garantia
1 Year
País de fabrico
China
Condições de entrega
FCA, FOB, CIF, EXW
Certificados
EPA, CE
Acessórios
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Hefei City, Anhui Province
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Acessórios
valvula de segurança de braço
valvula de segurança da lança
caixa fios twig
Ar condicionado
Hidráulica adicional
Pré-filtro motor
Balde de esqueleto
Farol Luz Rotativa
Aquecedor Gasóleo
Controlo por Joystick
Balde Escavação Standard
Cable bucket
V ditch bucket
Outras informaçőes
Specification
Power, traditional power
Domestic manufacturers
Bucket backhoe
Tonnage (tons)21
The working weight of the entire machine (kg) is 21,900
Bucket capacity (m³)1.1 (0.8-1.2)
Performance
Rotational speed (rpm)11
Walking speed (km/h)5.4/3.3
Climbing ability (%)70% (35°)
Grounding specific pressure (Kpa)47.4
Bucket digging force (kN)138
The digging force of the boom (kN) is 103
Power system
Engine model: Mitsubishi 4M50
Rated power (kw/rpm)118/2000
Maximum torque (N.m)580/1600
Displacement (L)4.9
Number of cylinders (4)
The cooling method is water cooling
Oil capacity
Fuel tank (L)390
Hydraulic oil tank (L)239
Engine oil change rate (L)22
Main body size
Total transportation length (mm)9680
Total transportation width (mm) : 2980
Total transportation height (mm)3440
The total height of the cab (mm) is 3075
The width of the vehicle (mm) is 2875

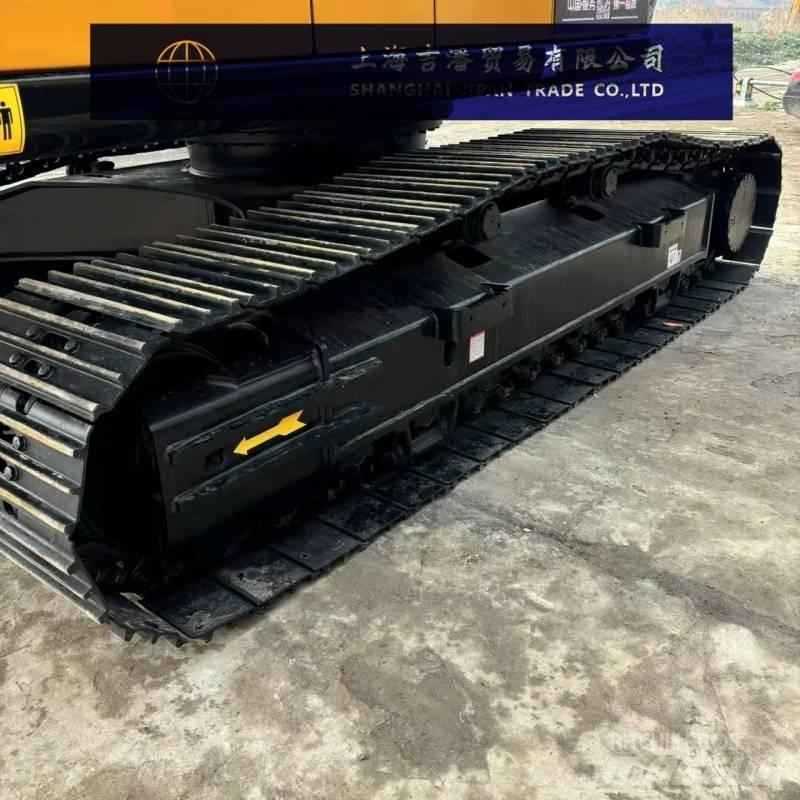

Track grounding length (mm)3445
The total length of the track (mm) is 4250
Track plate width (mm)600
Track gauge (mm)2380
Minimum ground clearance (mm)440
The minimum turning radius (mm) of the front-end working device is 3730
The rear end rotation radius (mm) is 2900
The maximum height (mm) at the minimum radius of rotation 7680
Number of sprocket rollers (single side) (pieces)2
Number of track plates (single side) (pieces)47
Number of supporting wheels (single side) (pieces)8
Scope of work
Maximum excavation radius (mm) : 10280
Maximum excavation depth (mm) : 6600
Maximum excavation height (mm) : 9600
Maximum unloading height (mm)6730
