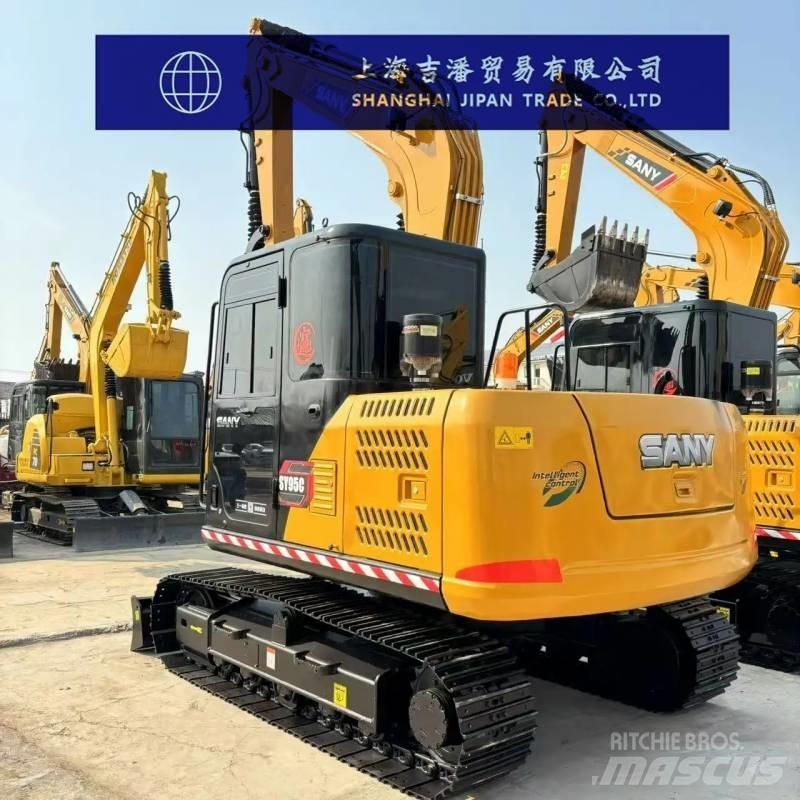

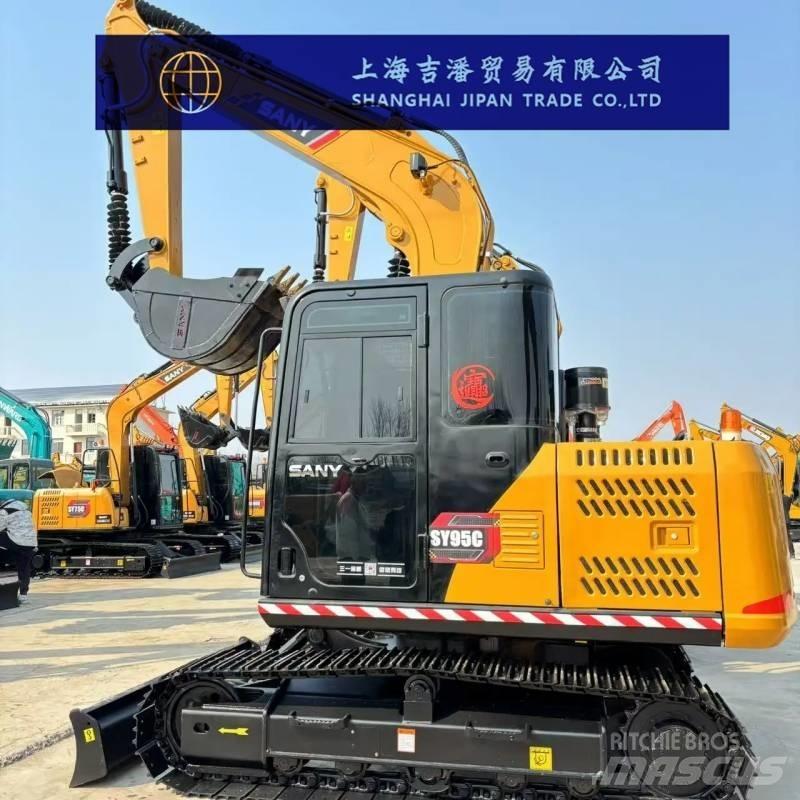

Sany SY 95 C
Preço sem IVA
Imprimir
INFO
Grupo de produtos
Escavadoras de rastos
Marca / modelo
Sany SY 95 C
Ano de fabrico
2024
Horas de utilização
500 h
País
China
Grau geral
1
2
3
4
5
Mascus ID
CC4BBC65
PREÇO
Escolher moeda
DETALHES
N°. de ref. de armazém
1
Tipo de accionamento
Diesel
Número de série
1
Número de proprietários anteriores
1
Última inspecção
2025-07-16
Condição do chassi
Good Condition
Motor
Original
Peso bruto
9 180 kg
Potência do motor
60,7 kW (82,5 cv)
Fabricante do Motor
Original
Matrícula
1
Classe de emissão
Stage V

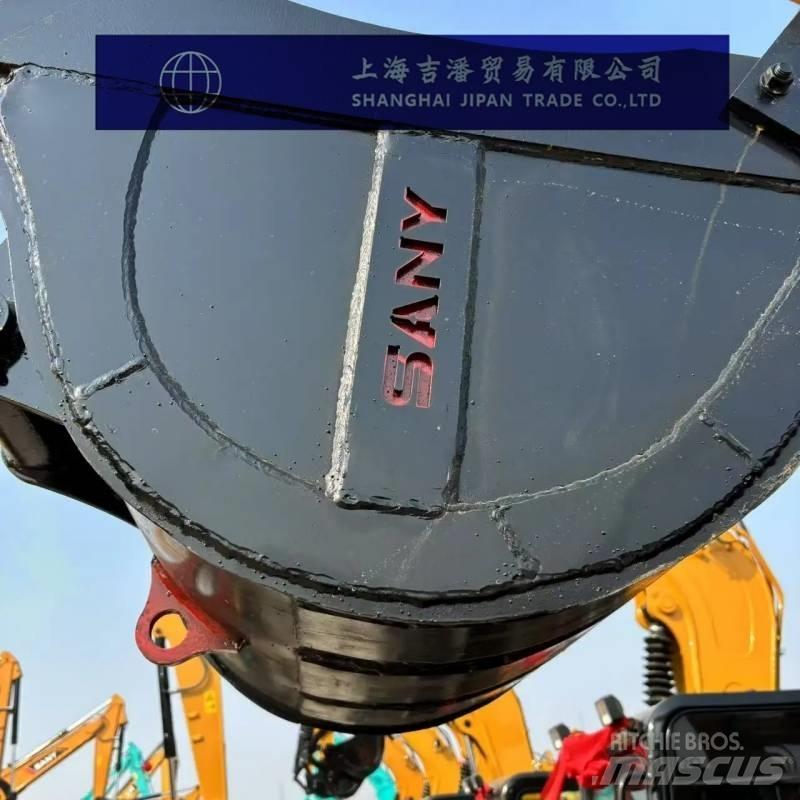

Capacidade do balde
0,39 m3
Largura Rastro
600 mm
Velocidade máxima
14 km/h
Dimensőes em transporte (CxLxA)
6560 x 2260 x 2650 mm
Cor Original
Original
Informações sobre a condição/garantia
1 Year
País de fabrico
China
Condições de entrega
FOB, CIF, EXW
Certificados
EPA, CE
Acessórios
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET
TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET
CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours:24 hours, holidays and Sundays
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Acessórios
caixa fios twig
Ar condicionado
engate rápido
Pré-filtro motor
Balde de esqueleto
Farol Luz Rotativa
Equipamento extra
Controlo por Joystick
Balde Escavação Standard
Cable bucket
V ditch bucket
Outras informaçőes
Specification
Power: Traditional power
Manufacturer: Domestic
Bucket: Backhoe
Tonnage (tons)9
The working weight of the entire machine (kg) is 9180
Bucket capacity (m³)0.2-0.45 (0.39)
Performance
Rotational speed (rpm) : 11.2
Walking speed (km/h)5.0/2.9
Climbing ability (%)70% (35°)
Ground pressure (Kpa) : 38.6
Bucket digging force (kN)63.6
The digging force of the bucket arm (kN) is 46.8
Power system
Engine model: Kubota V3800DI-T-E3B
Rated power (kw/rpm) : 60.7/2200
Maximum torque (N.m) : 305.4/1600
Displacement (L)3.769
Number of cylinders (4)
The cooling method is water cooling
Oil capacity
Fuel tank (L)160
Hydraulic oil tank (L)120
Engine oil change volume (L)12
Main body size
The total transportation length (mm) is 6560
The total transportation width (mm) is 2260
The total transportation height (mm) is 2650
The width of the vehicle (mm) is 2160
The total length of the track (mm) is 2980
Track plate width (mm) : 450
Track gauge (mm) : 1810
Minimum ground clearance (mm) : 360
The minimum turning radius (mm) of the front working device is 1990
Rear end turning radius (mm)1885
The maximum height (mm) at the minimum turning radius is 5700
Number of idler wheels (single side) (units)1
Number of track plates (single side) (pieces)41
Number of idler wheels (on one side) (5
Scope of work
Maximum excavation radius (mm) : 6660
Maximum excavation depth (mm) : 4330
Maximum excavation height (mm) : 7260
Maximum unloading height (mm) : 5210
Maximum vertical excavation depth (mm) : 3080
Width × height of the bulldozer board (mm)420 (height)
The bulldozer shovel lifts or deepens (mm)330/330
