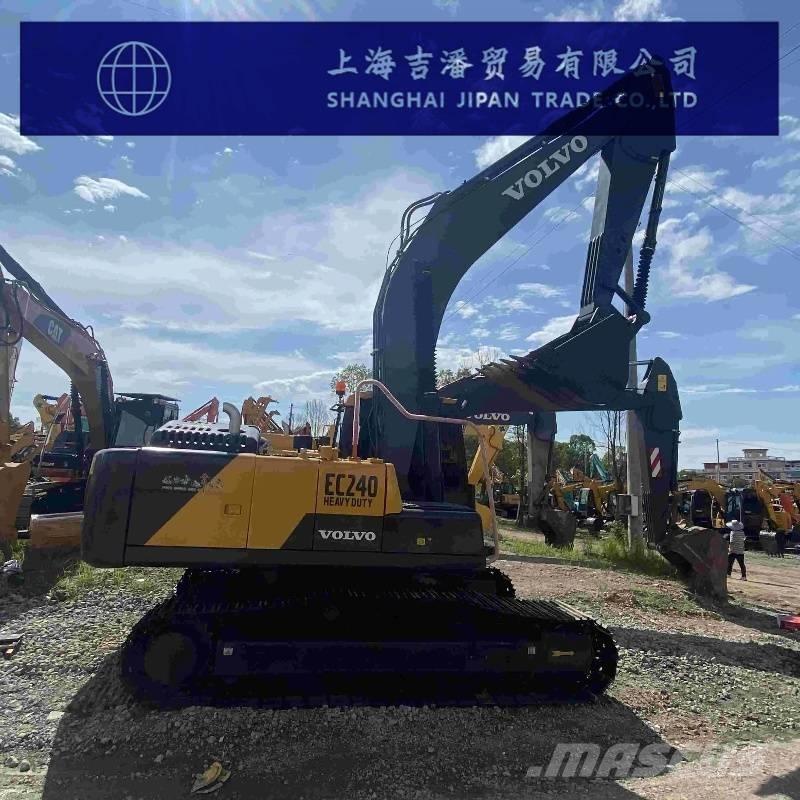

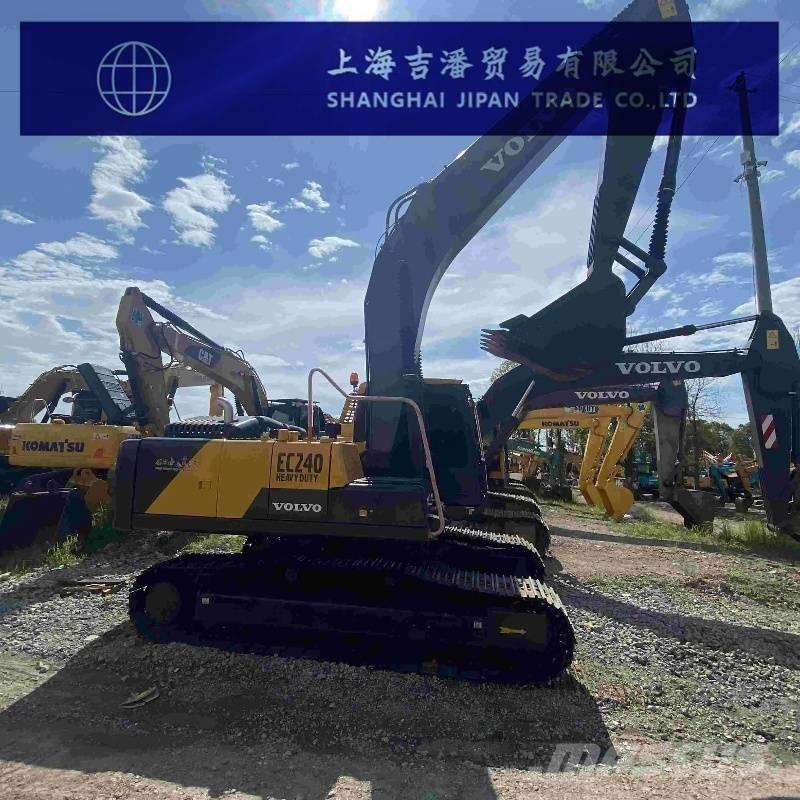

Volvo EC 240

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power:Traditional power The working weight of the entire machine (kg) is 24,300 Bucket capacity (m³):1.05-1.98 Boom length (mm):6000 The length of the bucket pole (mm) is 2970 Tonnage (tons):24 Performance Rotational speed (rpm):11.4 Walking speed (km/h):3.2/5.5 Climbing ability (%)70 Grounding specific pressure (Kpa)50 Bucket digging force (kN)160.8 (standard mode) /175.5 (additional force mode) Boom digging force (kN)111.1 (standard mode) /121.6 (additional force mode) Power system Engine model:D7D Rated power (kw/rpm)134/2000 Displacement (L):7.1 Number of cylinders:6 units Bore × stroke (mm):108×130 The cooling method is water cooling Maximum torque in working mode: 750N.m/1400rpm, turbocharged Hydraulic system The main pump type is variable axial piston pump ×2+ gear pump The type of walking hydraulic motor is a variable axial piston motor Rotary hydraulic motor type: Axial piston hydraulic motor The maximum flow rate of the main pump (l/min) is 230×2+20 Working hydraulic oil circuit (Mpa):31.4/34.3 Walking hydraulic circuit (Mpa):34.3 Rotary hydraulic circuit (Mpa):26.5 Control hydraulic Circuit (Mpa):3.9 Boom cylinder - Number × cylinder bore × stroke (mm)2-135×1345 Bucket rod cylinder - Number × cylinder bore × stroke (mm)1-140×1665 Bucket cylinder - Number × cylinder diameter × stroke (mm)1-130×1150 Oil capacity Fuel tank (L):380 Hydraulic oil tank (L):190 Hydraulic System (L):320 Engine oil change rate (L):32 Coolant (L)44 Main body size Total transportation length (mm):10020 Total transportation width (mm):2990 Total transportation height (mm):3040 The total height of the cab (mm) is 2990 Track grounding length (mm)3660 The total length of the track (mm) is 4460 Track plate width (mm)600 The total width of the track (mm) is 2990 Track gauge (mm):2390 Minimum ground clearance (mm):470 The ground clearance of counterweights (mm) is 1080 The minimum turning radius (mm) of the front-end working device is 3890 Rear end rotation radius (mm)2940 Scope of work Maximum excavation radius (mm):10260 The maximum excavation radius (mm) of the shutdown surface is 10080 Maximum excavation depth (mm):6980 Maximum excavation height (mm):9690 Maximum unloading height (mm):6800 The maximum vertical excavation depth (mm) is 5970 The maximum effective excavation depth (mm) is 6740
